Intelligent valve positioners from Val Controls

Intelligent Hydraulic Positioner - IHP24

4 products

IHP24 - Positioners

• Smart positioner for hydraulic or pneumatic actuators
• Choke Valve Positioning
• Automatic intelligent calibration
• User-friendly menu.
• Models available with a compact flame proof (Ex d) in SS316L

Product line brochure
Previous
The IHP24-BF is an Intelligent Hydraulic Positioner housed in a compact SS316L enclosure, designed for use in Ex areas. The enclosure features gland holes and easily accessible mounting brackets, making installation and use straightforward.
IHP24-BF
The IHP24-BF is an Intelligent Hydraulic Positioner housed in a compact SS316L enclosure, designed for use in Ex areas. The enclosure features gland holes and easily accessible mounting brackets, making installation and use straightforward.
IHP24-AF
IHP24-B
IHP24-B

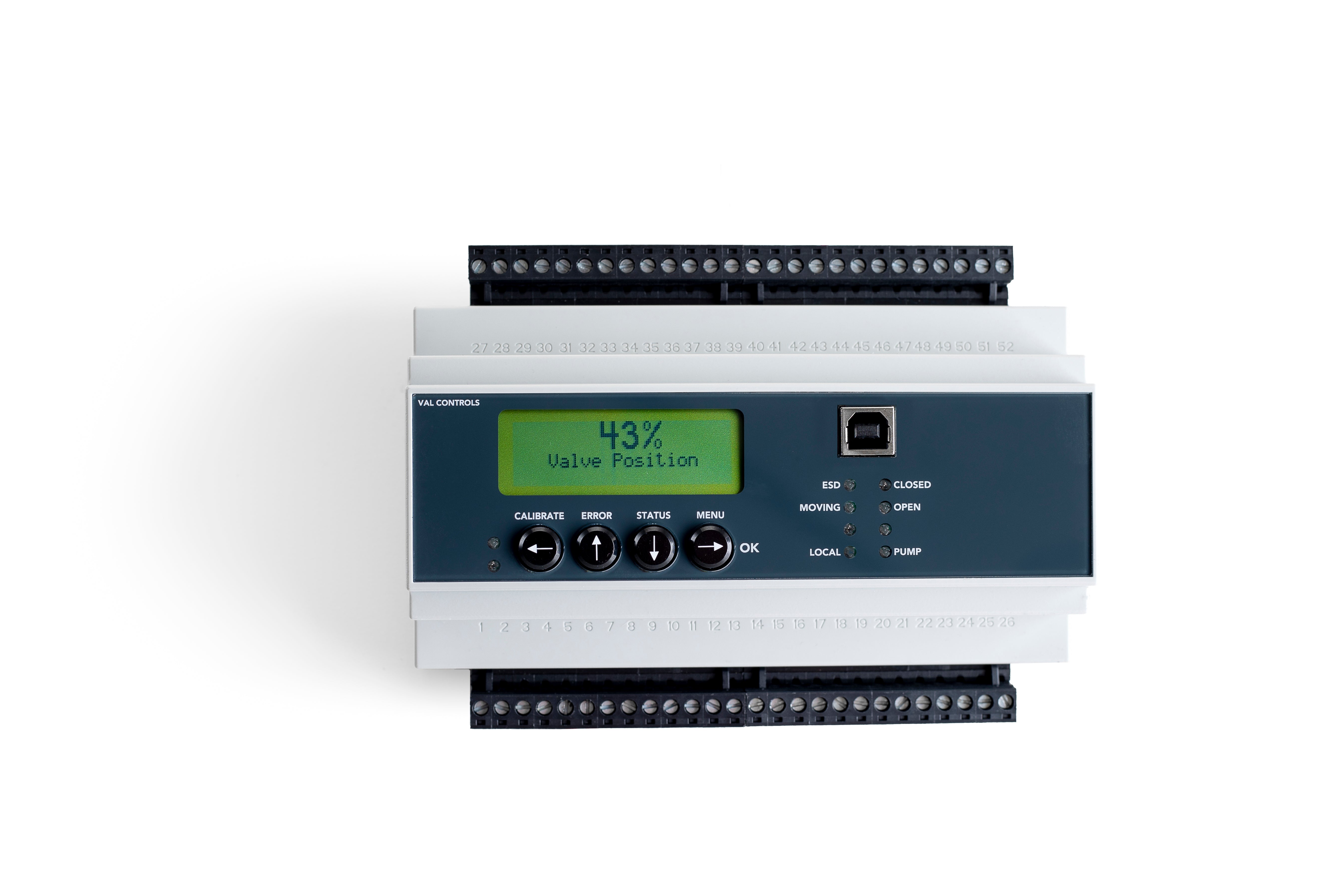

IHP24-A - Intelligent Hydraulic Positioner used for DIN-rail mounting. Used for controlling Proportional Solenoid valves.
IHP24-A

IHP24

Engineered Positioners

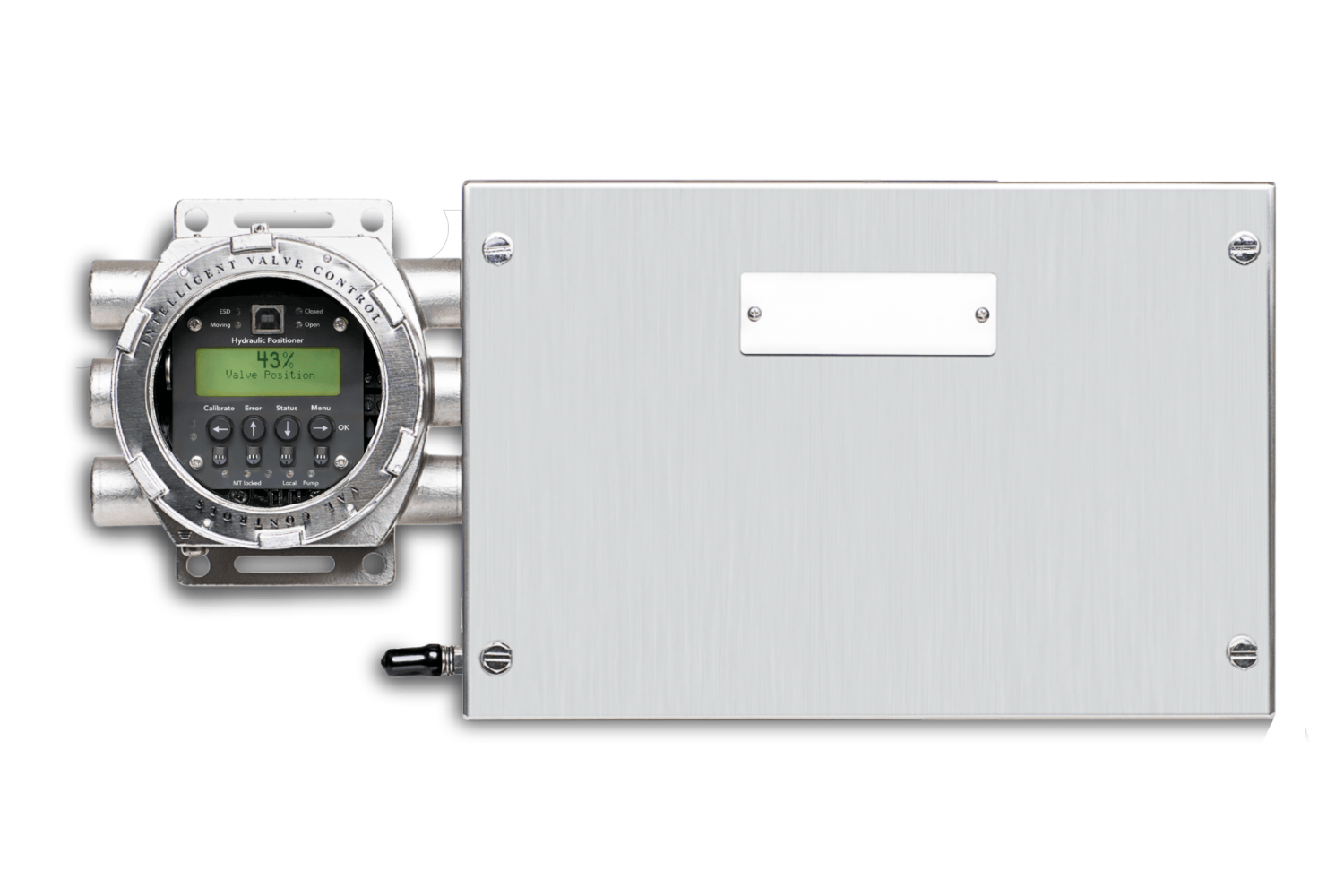

IHP24-BF with an added Ex e terminal box. Options include:

  • Vertical terminal box
Engineered Positioners >

Key product features

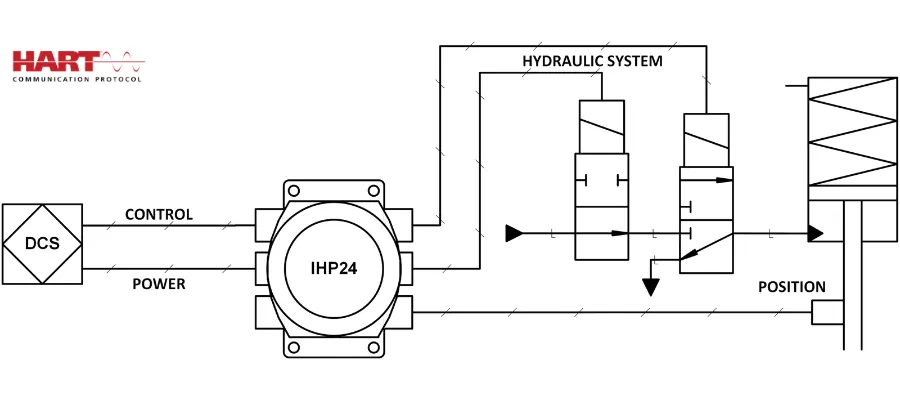

The Hydraulic Positioner provided by Val Controls can be used to position any type of actuator available on the market. The IHP24 offers a straightforward yet efficient method to achieve accurate valve positioning within a hydraulic control system.

Intelligent Positioner for Hydraulic actuators

The IHP24 product range from Val Controls is a series of Intelligent Hydraulic Positioners designed for precise positioning of actuators
and choke valves. Our positioners feature an advanced calibration process that, when combined with the intelligent regulator, ensures fast and reliable
actuator positioning, delivering optimal performance and precision for your
system.

Drawing on decades of experience with valve positioning, we have designed the IHP24 range to be highly flexible and configurable, meeting the needs of any customer. It is also developed to be user-friendly for both manufacturers and end-users in daily operation.

The IHP24 range is compatible with all types of valve systems, including pneumatic and hydraulic applications, spring-return, stepping, and double-acting actuators, making it a versatile solution that easily adapts to your system’s requirements.

Product line brochure - IHP24

Communication protocols

HART v.7

Modbus - RS-485

Foundation Fieldbus H1

ValConnect - IHP24
ValConnect - IHP24
ValConnect - IHP24
ValConnect - IHP24
Val Controls

ValConnect - IHP24

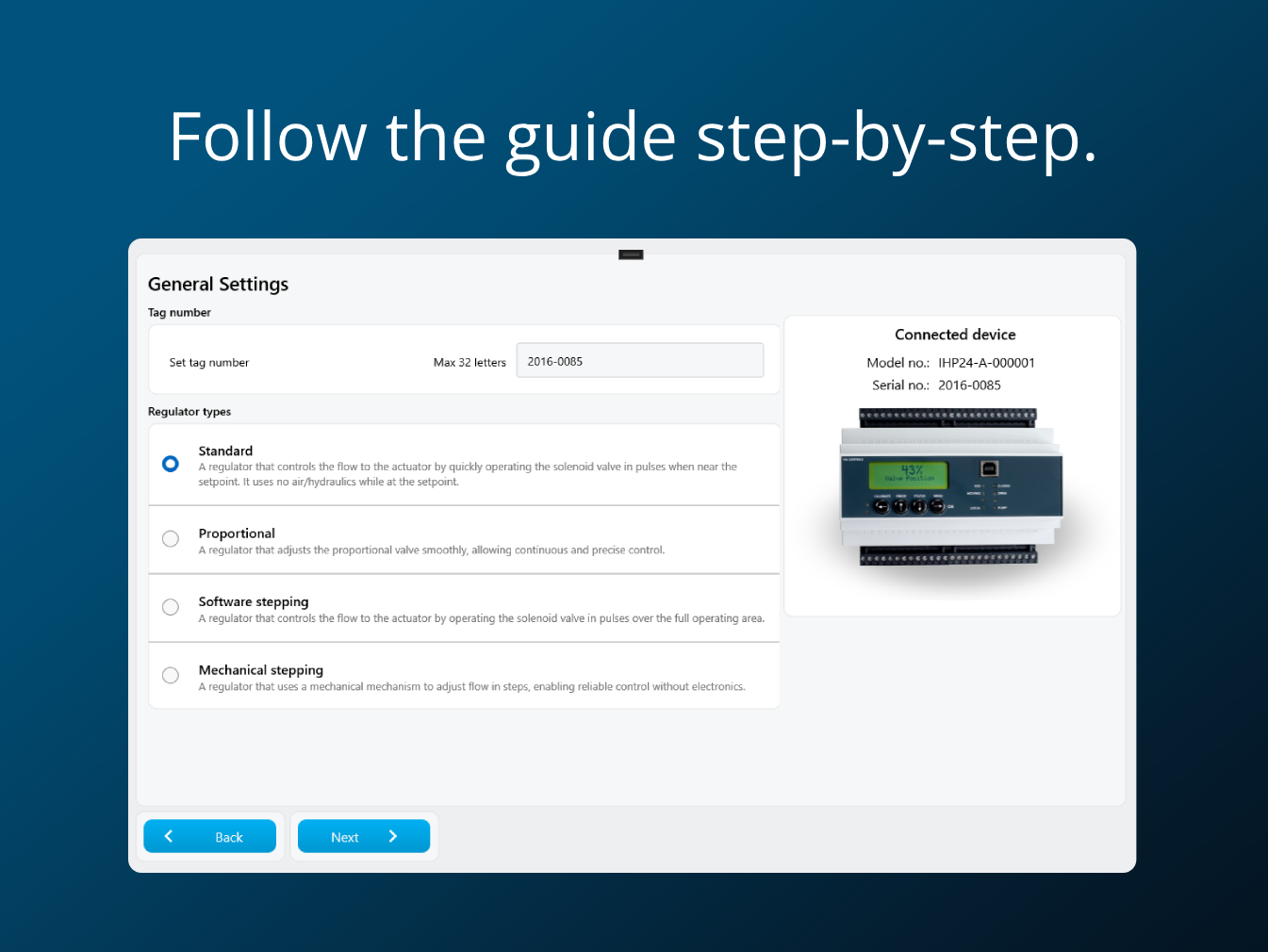

Configuration software

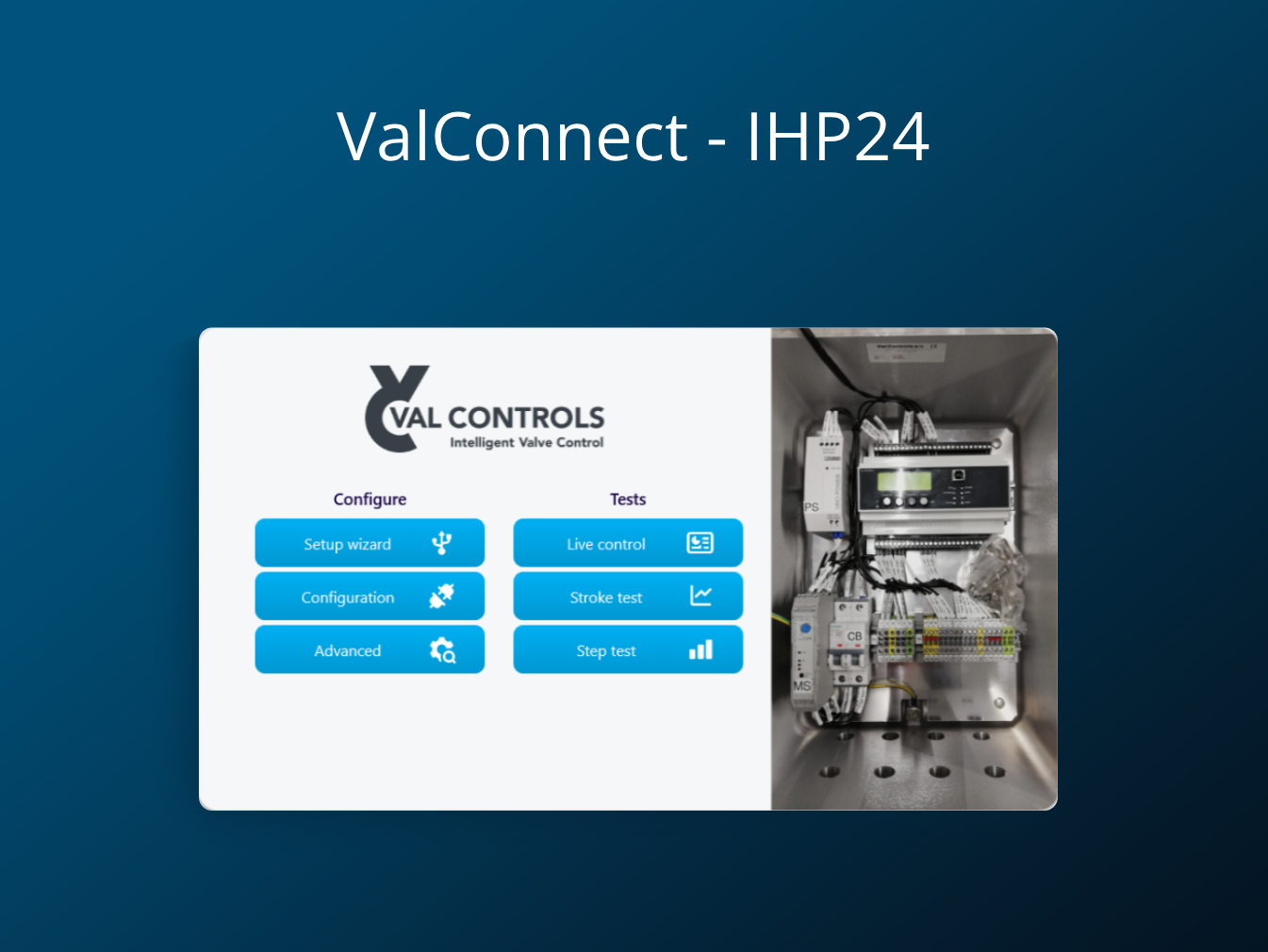

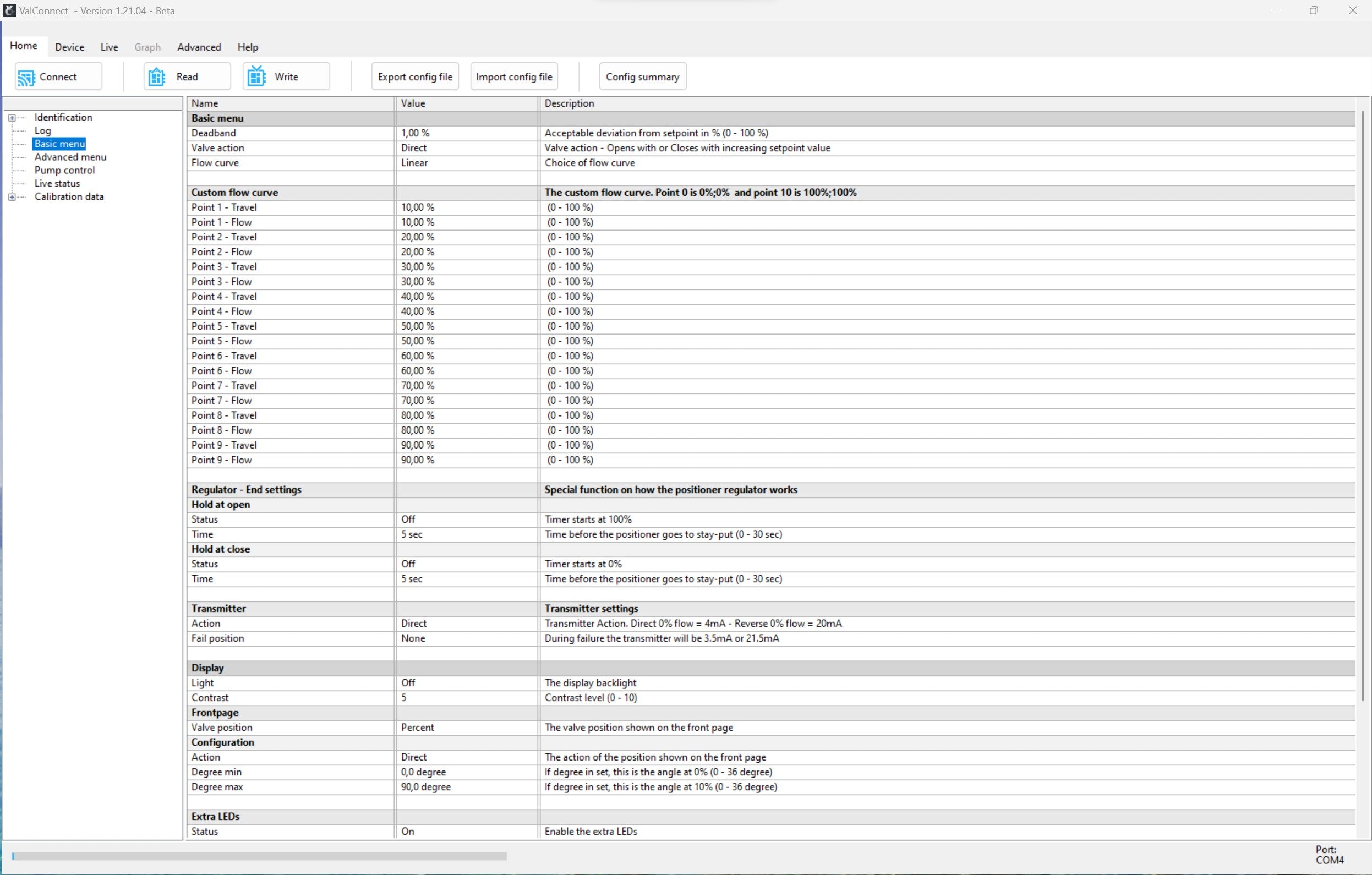

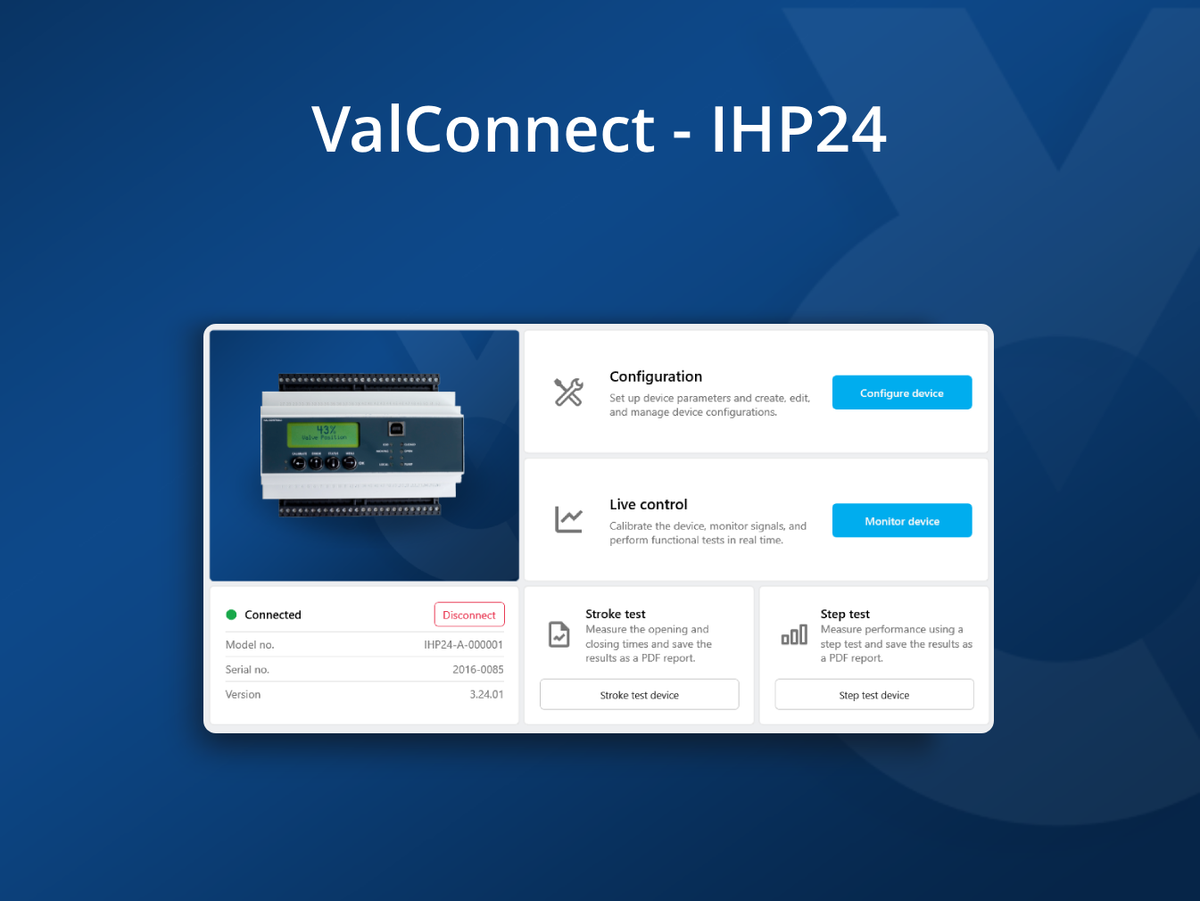

ValConnect for the IHP24 is a free software tool used to configure all IHP24 positioners sold by Val Controls.

To configure the positioner, ValConnect must be downloaded to your PC and the PC connected to the USB-port located on the controllers local user interface.

With ValConnect it is possible to:

• Configure multiple units with the same configuration

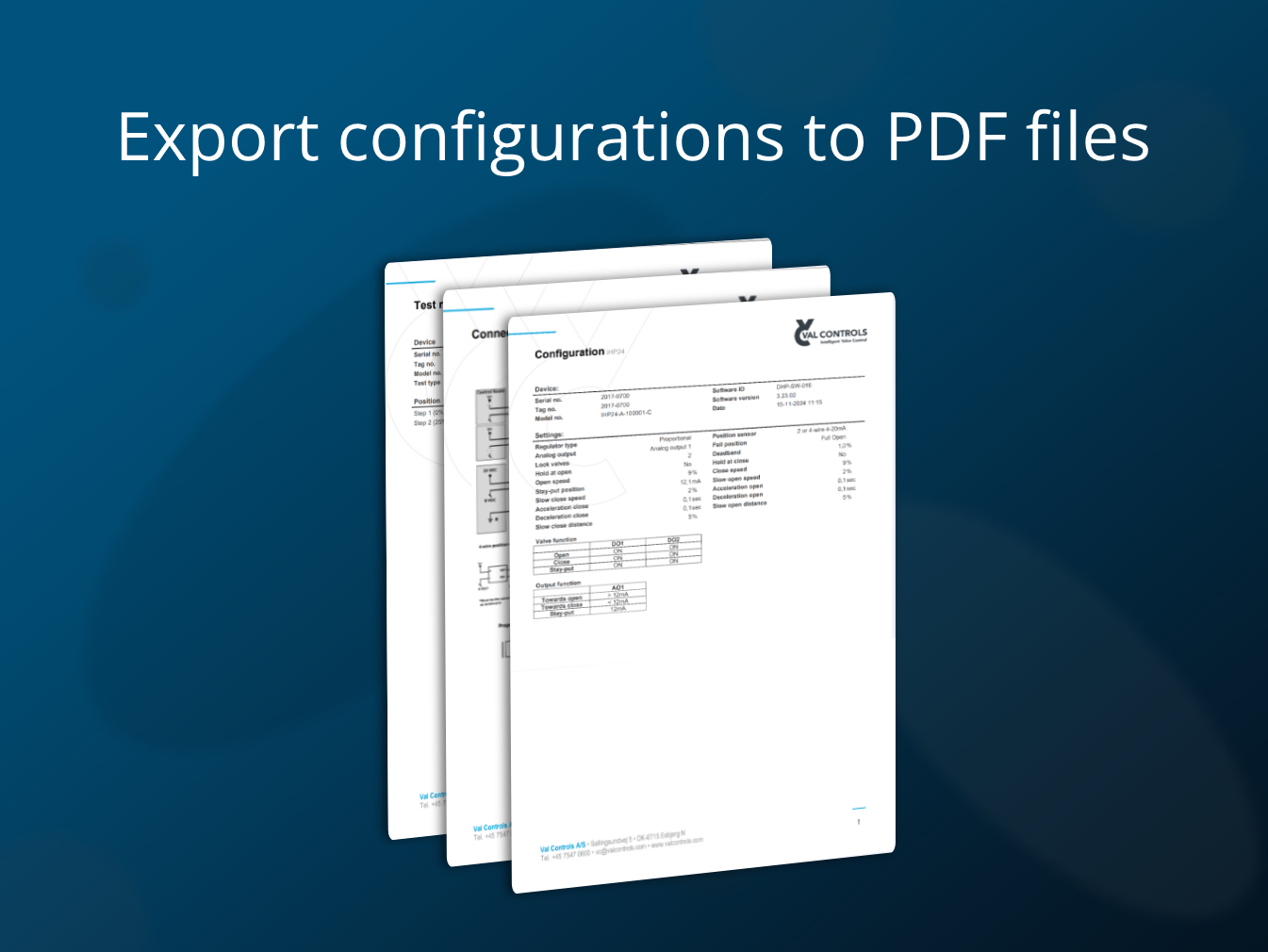

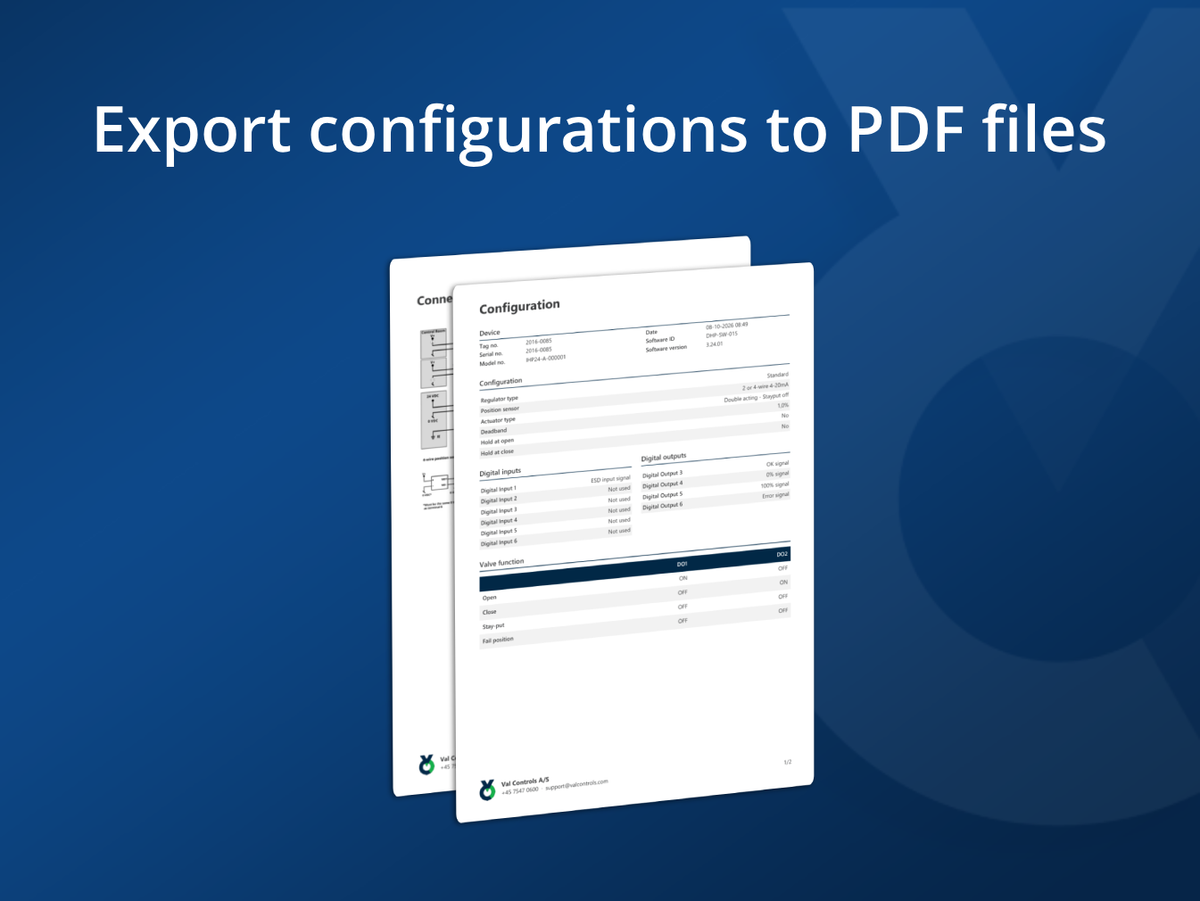

• Save configuration for documentation
• Update software on the unit
• Monitor and control all in- and outputs

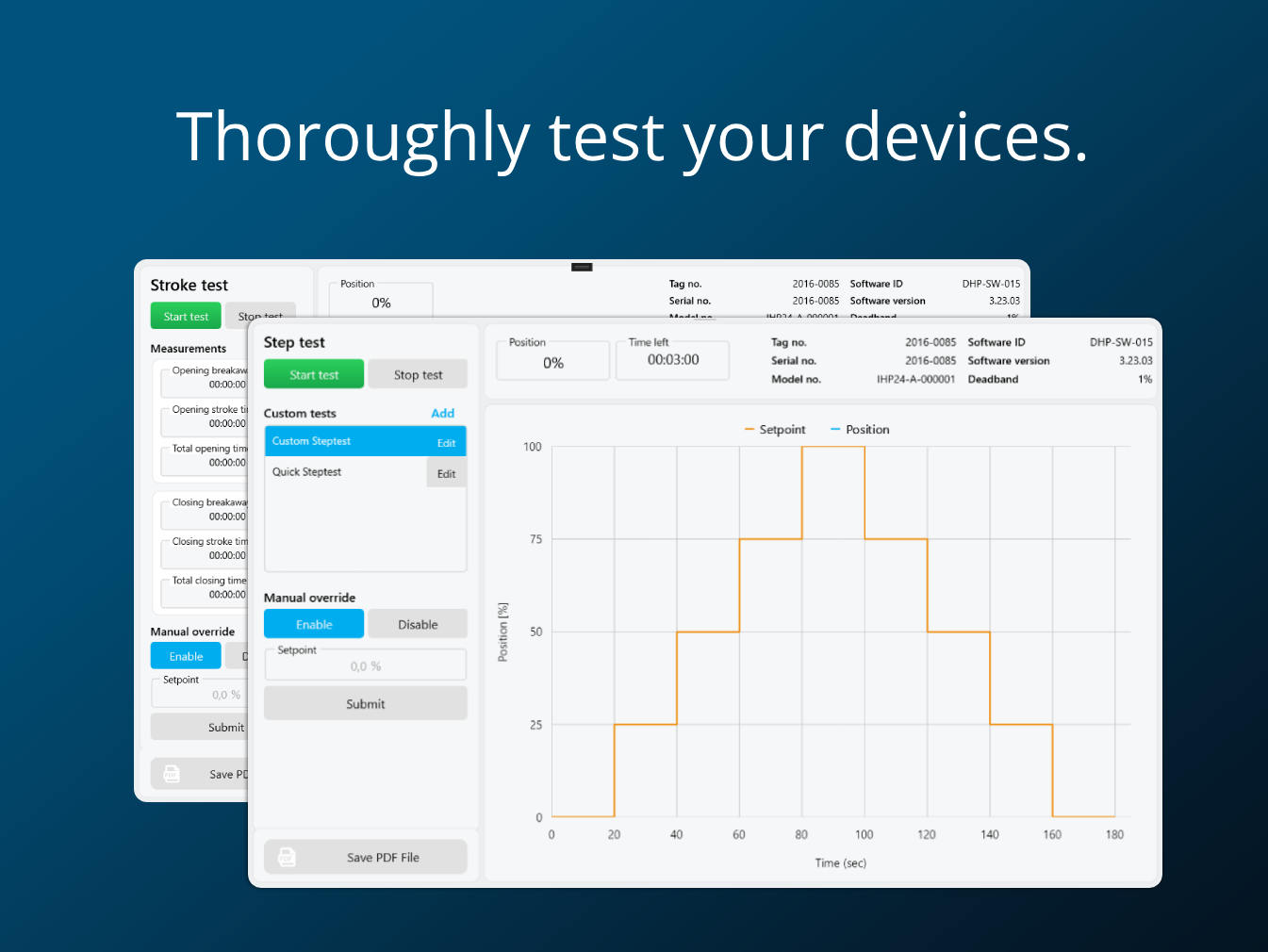

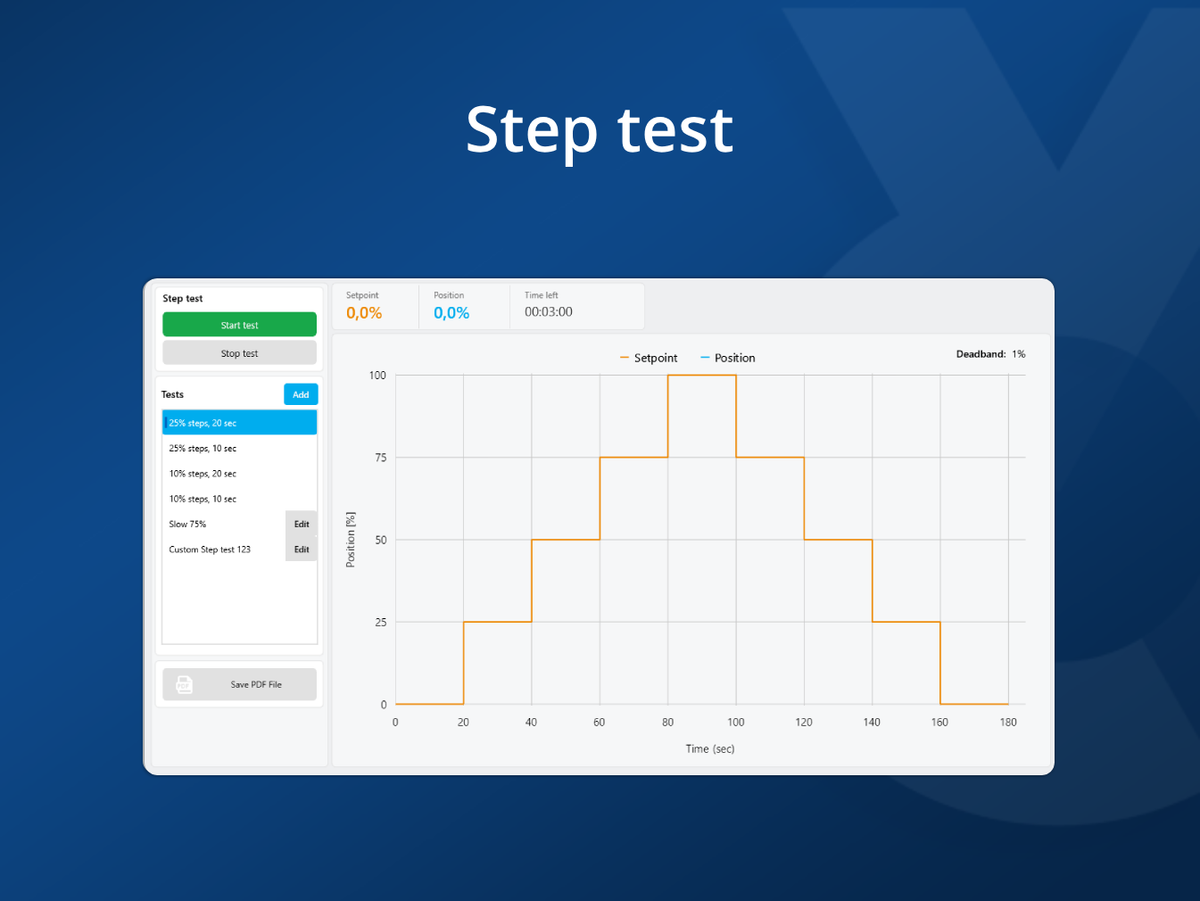

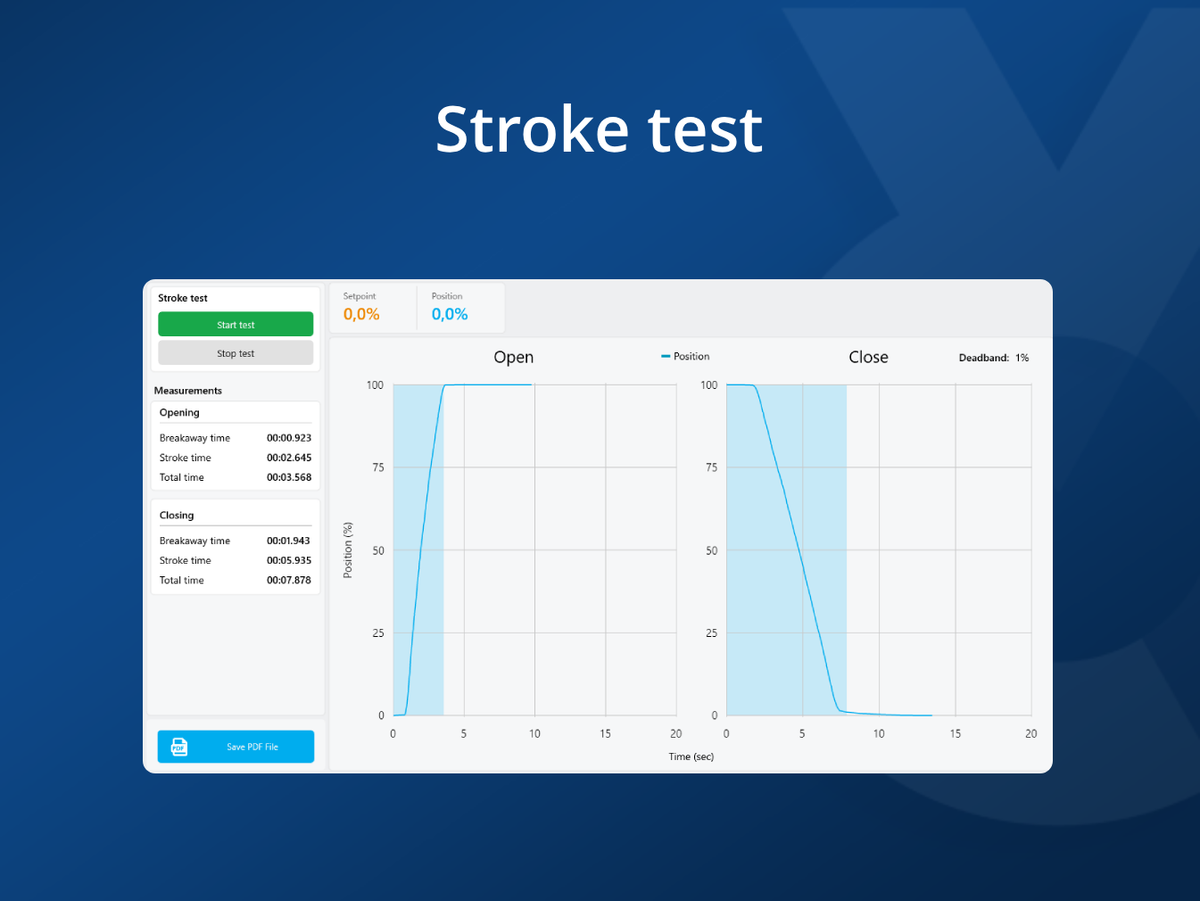

• Perform step and stroke tests and generate a PDF-report with results

We only collect the necessary data to provide our services and comply with all relevant regulations. Read our full privacy policy here.

Download ValConnect

Case studies

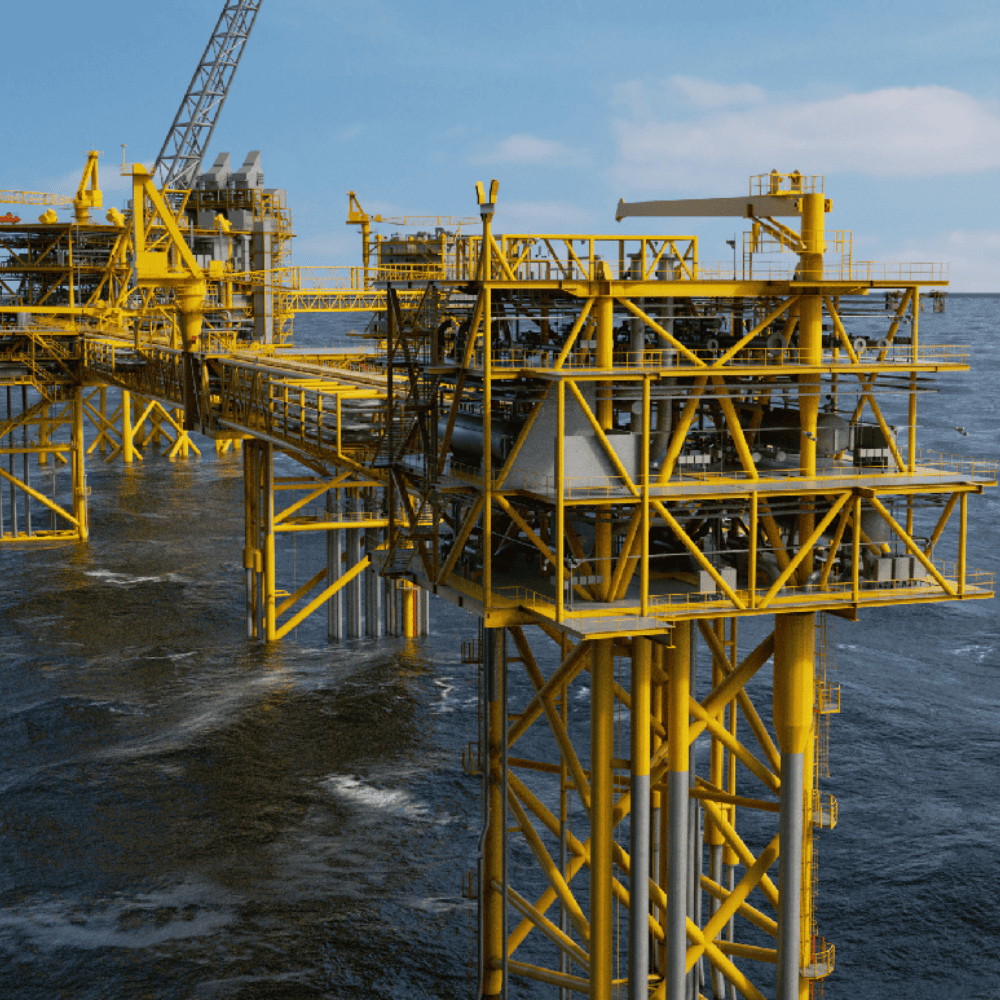

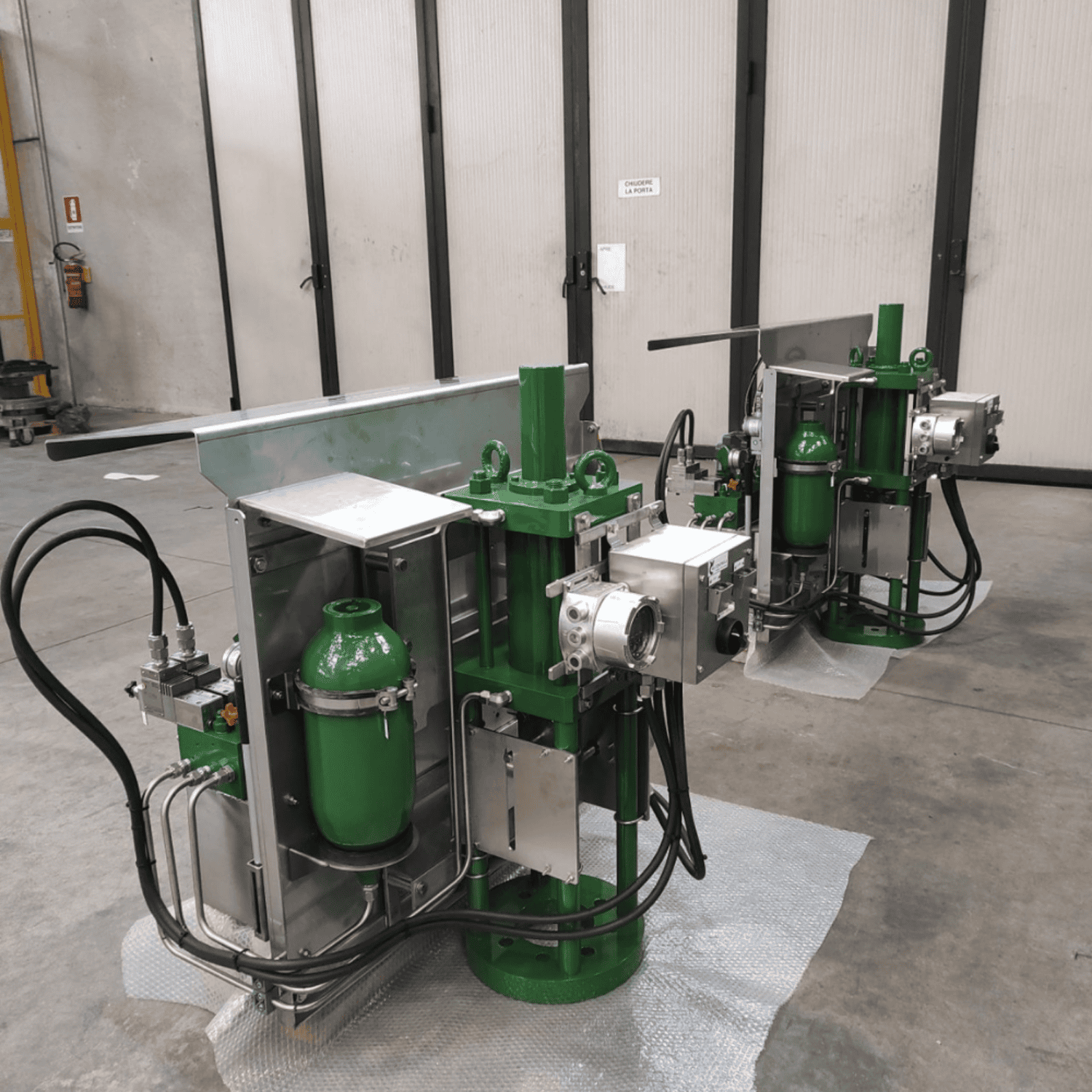

Flameproof Hydraulic Positioner on a choke valve

General application for the Hydraulic Positioner

Proportional Hydraulic Positioner
