IHP24-A

SKU: IHP24-A-000001

Communication: None

ValConnect - Configuration and test software

Product details

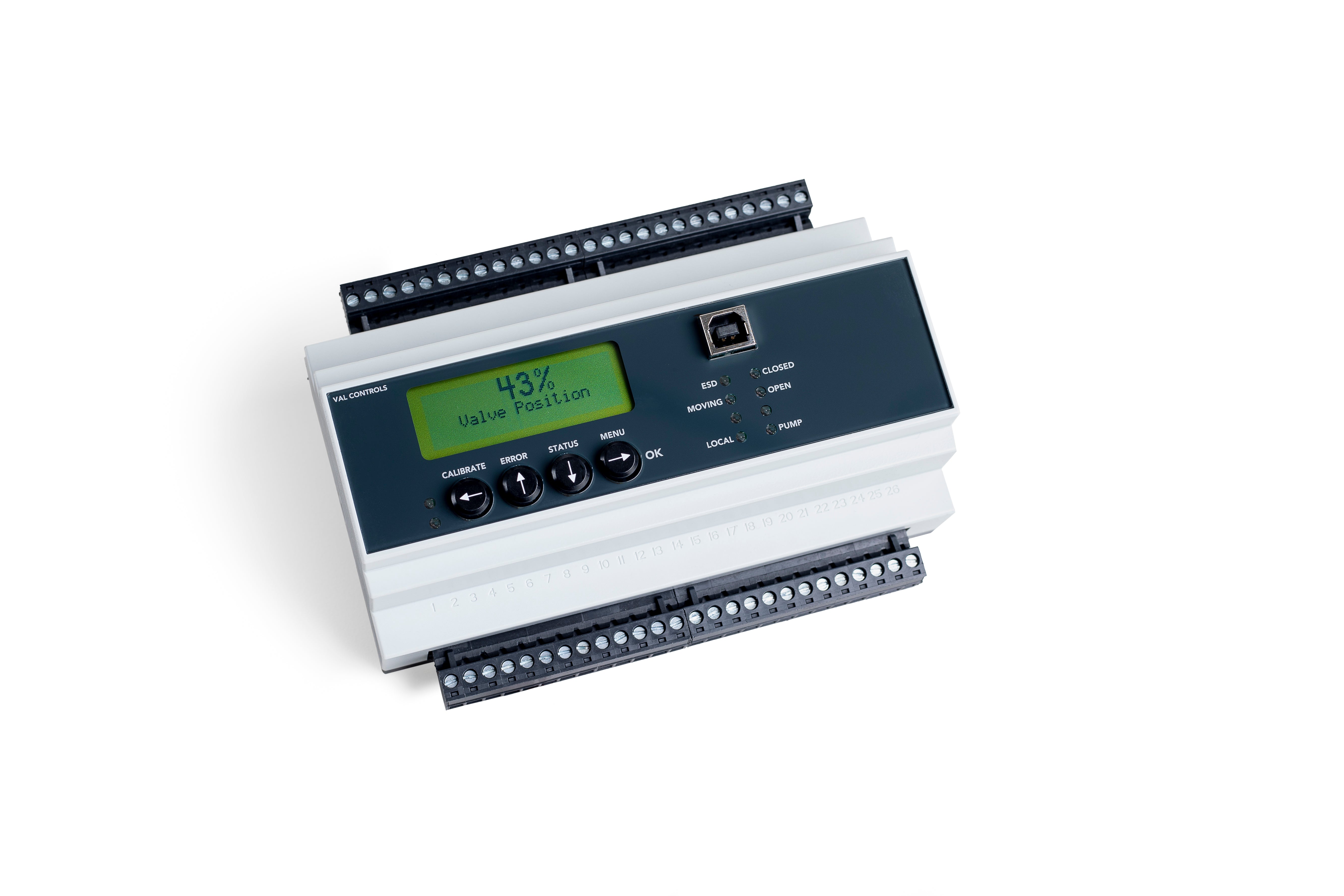

The IHP24-A is the most versatile positioner in the range. It is equipped with an extension interface which makes it possible to add extra hardware functionality on customer request. It offers inputs for several 4-20mA sensors and digital signals which make it possible to configure the positioner to control or monitor other applications connected to the valve. Furthermore, this model offers the option to control proportional solenoid valves.

The DIN rail mounted positioner is an ideal solution for achieving precise positioning of actuators or choke valves with solenoid valves. Our positioner is equipped with an advanced calibration process that, when combined with the regulator, ensures fast and reliable positioning of actuators, providing an optimal performance and precision for your system.

The positioner is compatible with all actuator types including; hydraulic, pneumatic, or electro-hydraulic - spring return, double acting and stepping actuators.

Design

Temperature range: -30°-+80°
Ingress protection: IP20
Enclosure material: Plastic

Communication

HART, Modbus and Foundation Fieldbus

Approvals and standards

EMC according to IEC 61000

Power

24VDC – unit power consumption <2W

Documentation

Manuals

Certificates

Declaration of Conformity

Dimensional drawings

User interface

Local display control is available for the IHP24-A positioner, granting full access to configure the positioner and control the valve system. Furthermore, the IHP24-A is equipped with various indicator LEDs that show the status of the system.
