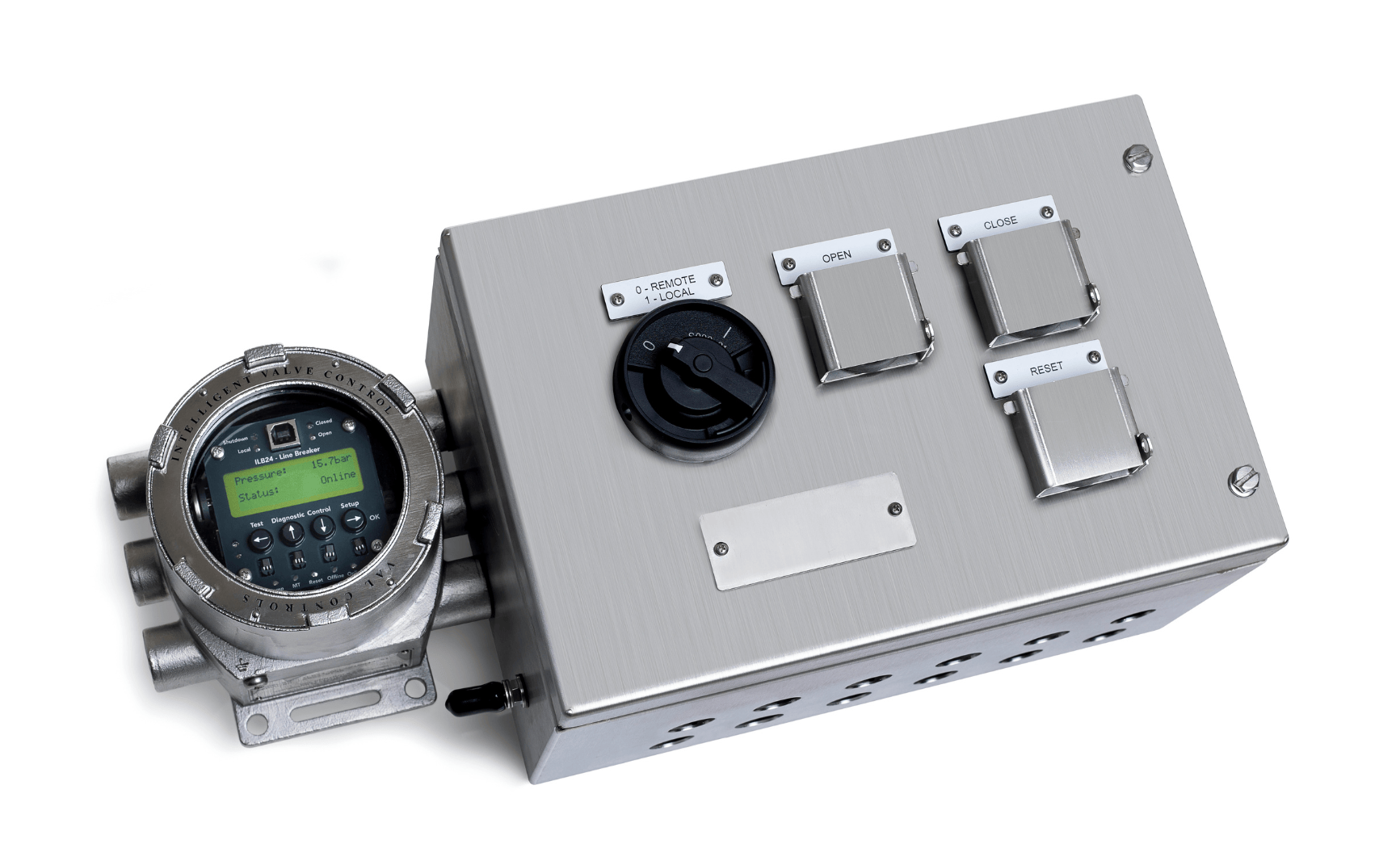

ILB24-AFL - Intelligent Line Breaker with a local control panel in SS316L housing material. Used for pipeline monitoring and control in Ex areas.
ILB24-AFL - Intelligent Line Breaker with a local control panel in SS316L housing material. Used for pipeline monitoring and control in Ex areas.
Val Controls

ILB24-AFL

SKU: ILB24-AFL-210043-S1
Request documentation
ValConnect - Configuration and test software

Product details

The ILB24-AFL is an Intelligent Line Break Controller housed in a durable SS316L enclosure, designed for use in Ex areas. This controller features a local control panel and offers a straightforward solution for monitoring and shutting down pipelines in emergency situations.

The controller continuously monitors pipeline pressure and will automatically shut down the flow if abnormal pressure is detected.

The ILB24-AFL is available in various enclosure types, all suitable for hazardous environments and certified with the necessary area approvals.

Design

Temperature range: -30°-+60°
Ingress protection: IP66
Enclosure material: SS316L

Communication

Modbus

Approvals and standards

EMC according to IEC 61000

Power

24VDC – unit power consumption <2W

Ex approvals

ATEX and IECEx
II 2 GD Ex de IIC T4-T6

ILB24-AFL

ILB24-AFL - Intelligent Line Breaker with a local control panel in SS316L housing material. Used for pipeline monitoring and control in Ex areas.

User interface and MTControl

User interface for both configuration and use.

  • Graphical display and control buttons
  • System and indicator LEDs
  • USB
  • MTControl

Certification and material

Housing is manufactured by SS316L.

Certified ATEX and IECEx.

Local Control Panel

  • Switch for remote or local control
  • Open push button
  • Close push button
  • Reset push button
