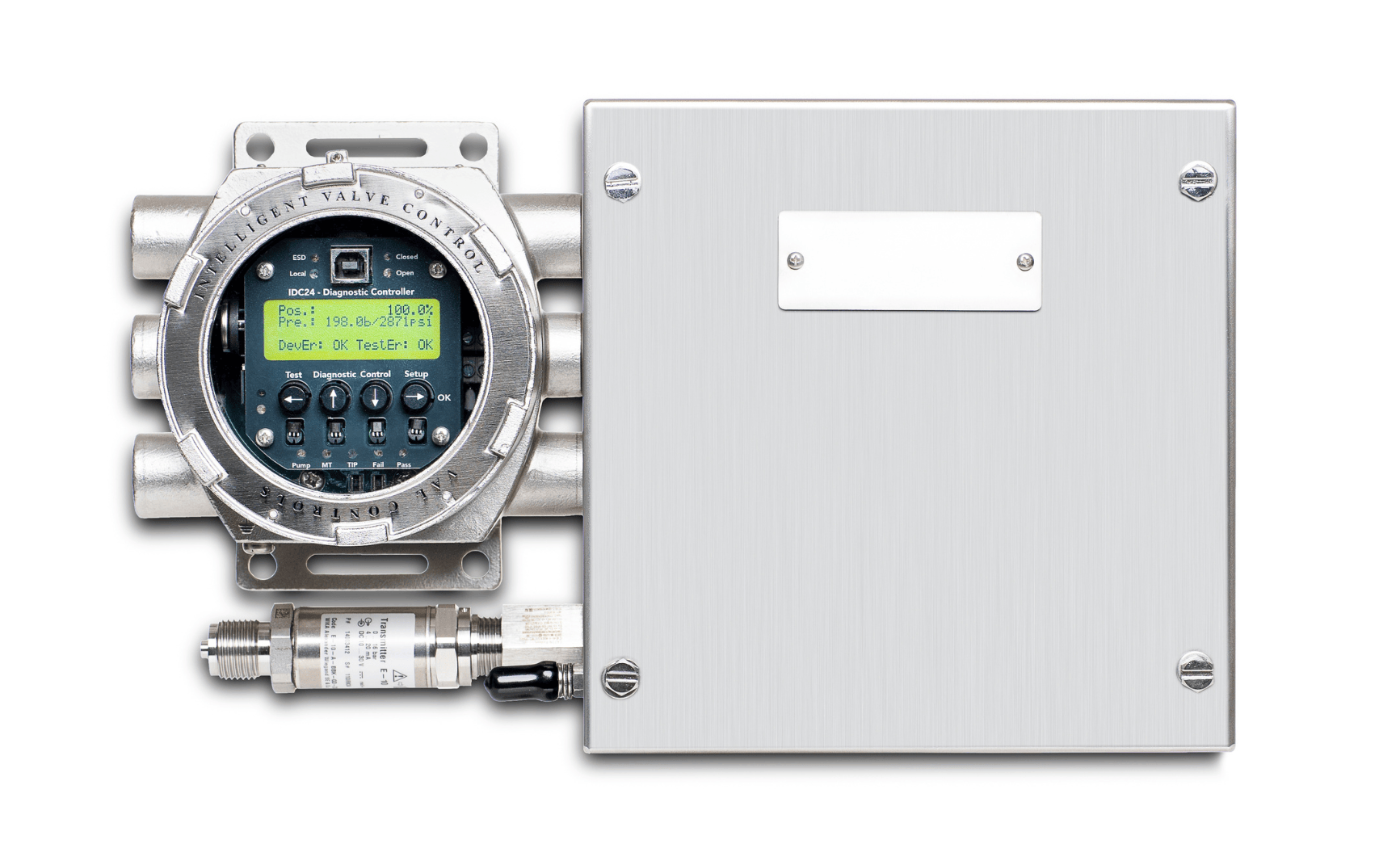

ILB24-AFE - Intelligent Line Breaker l in SS316L housing material. Used for pipeline monitoring and control in Ex areas.

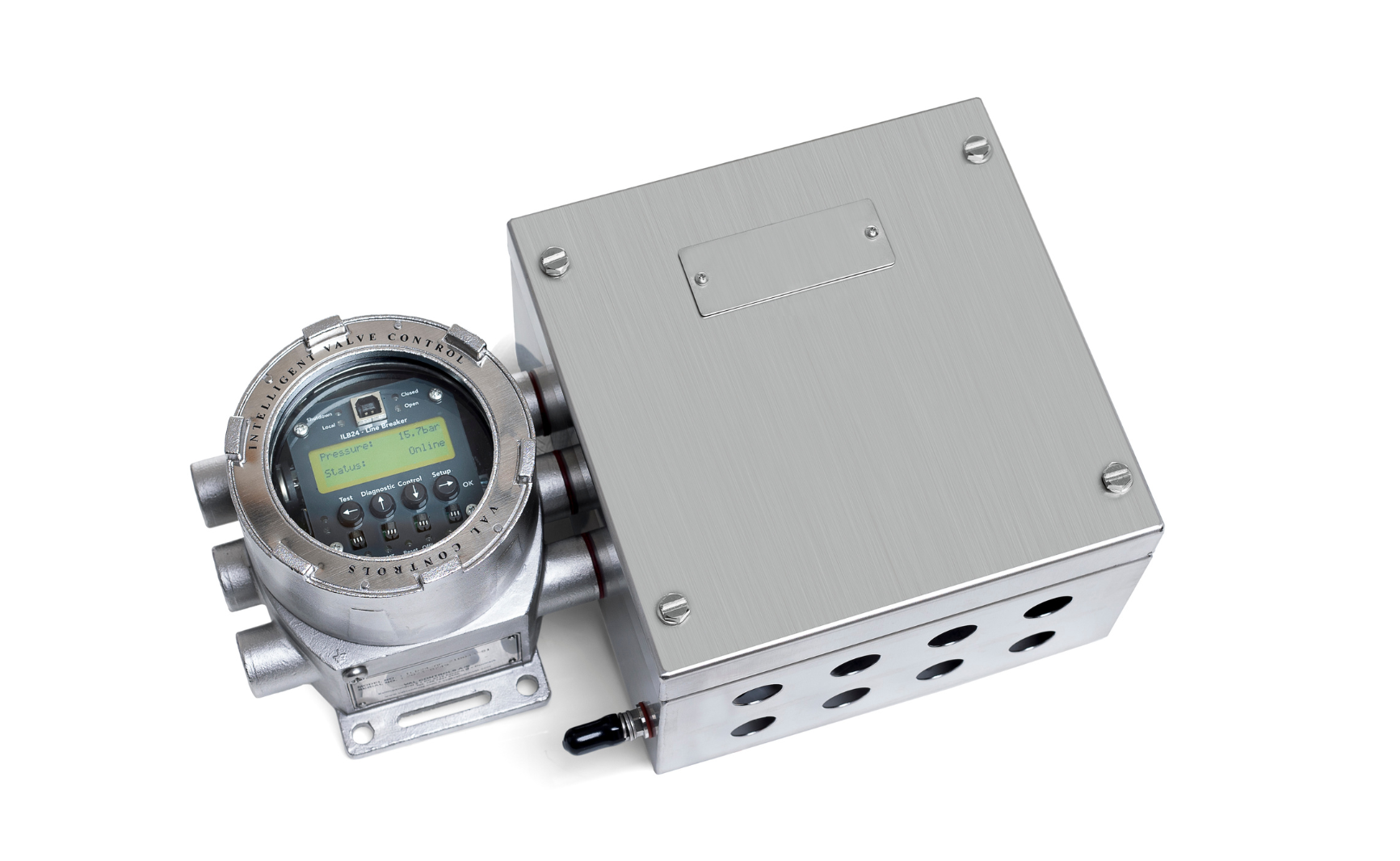

ILB24-AF - Intelligent Line Breaker l in SS316L housing material. Used for pipeline monitoring and control in Ex areas.
Val Controls

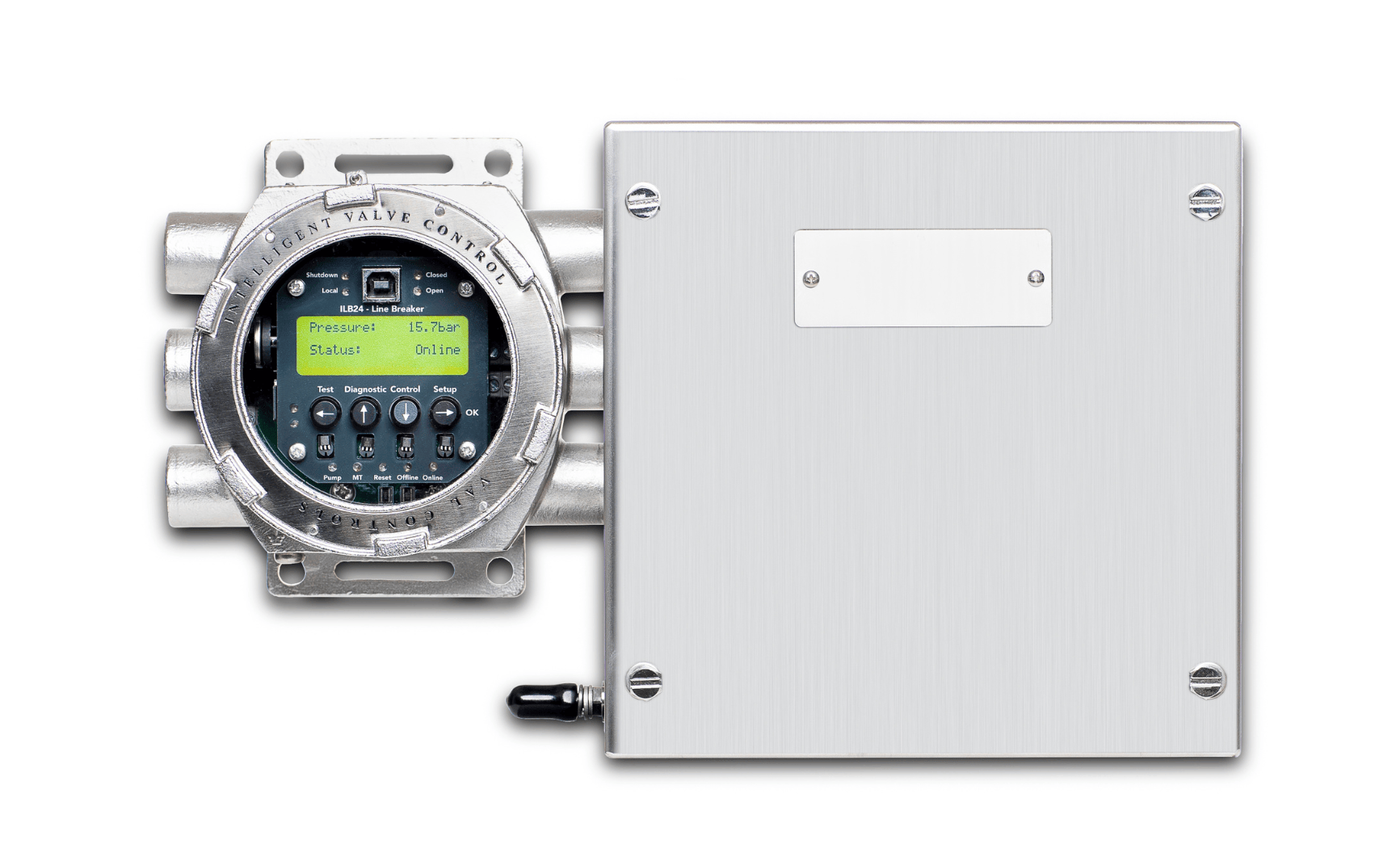

ILB24-AFE

SKU: ILB24-AFE-210043-S1
Request documentation
ValConnect - Configuration and test software

Product details

The ILB24-AFE is an Intelligent Line Break Controller housed in a durable SS316L enclosure, designed for use in Ex areas. It offers a straightforward solution for monitoring and shutting down pipelines in emergency situations.

The controller continuously monitors pipeline pressure and will automatically shut down the flow if abnormal pressure is detected.

Design

Temperature range: -30°-+60°
Ingress protection: IP66
Enclosure material: SS316L

Communication

Modbus

Approvals and standards

EMC according to IEC 61000

Power

24VDC – unit power consumption <2W

Ex approvals

ATEX and IECEx
II 2 GD Ex de IIC T4-T6

ILB24-AF

ILB24-AFE

User interface and MTControl

User interface for both configuration and use.

  • Graphical display and control buttons
  • System and indicator LEDs
  • USB
  • MTControl

Certification and material

Housing is manufactured by SS316L.

Certified ATEX and IECEx.
