Val Controls

ILB24-AF

SKU: ILB24-AF-210043-S1
Product line brochure>
Datasheet>
Documentation>

Product details

The ILB24-AF is an Intelligent Line Break Controller housed in a durable SS316L enclosure, designed for use in Ex areas. It offers a straightforward solution for monitoring and shutting down pipelines in emergency situations.

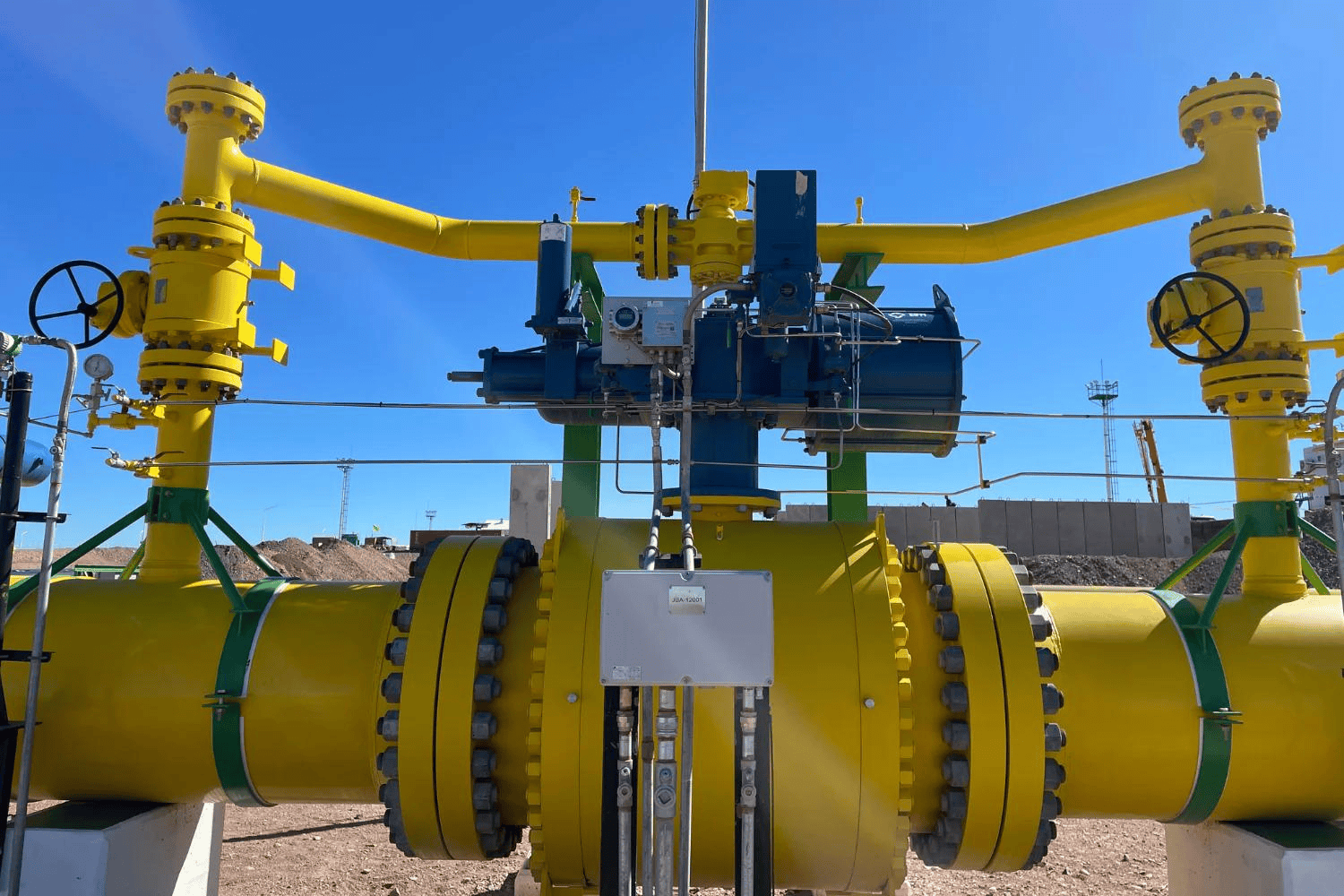

The controller continuously monitors pipeline pressure and will automatically shut down the flow if abnormal pressure is detected.

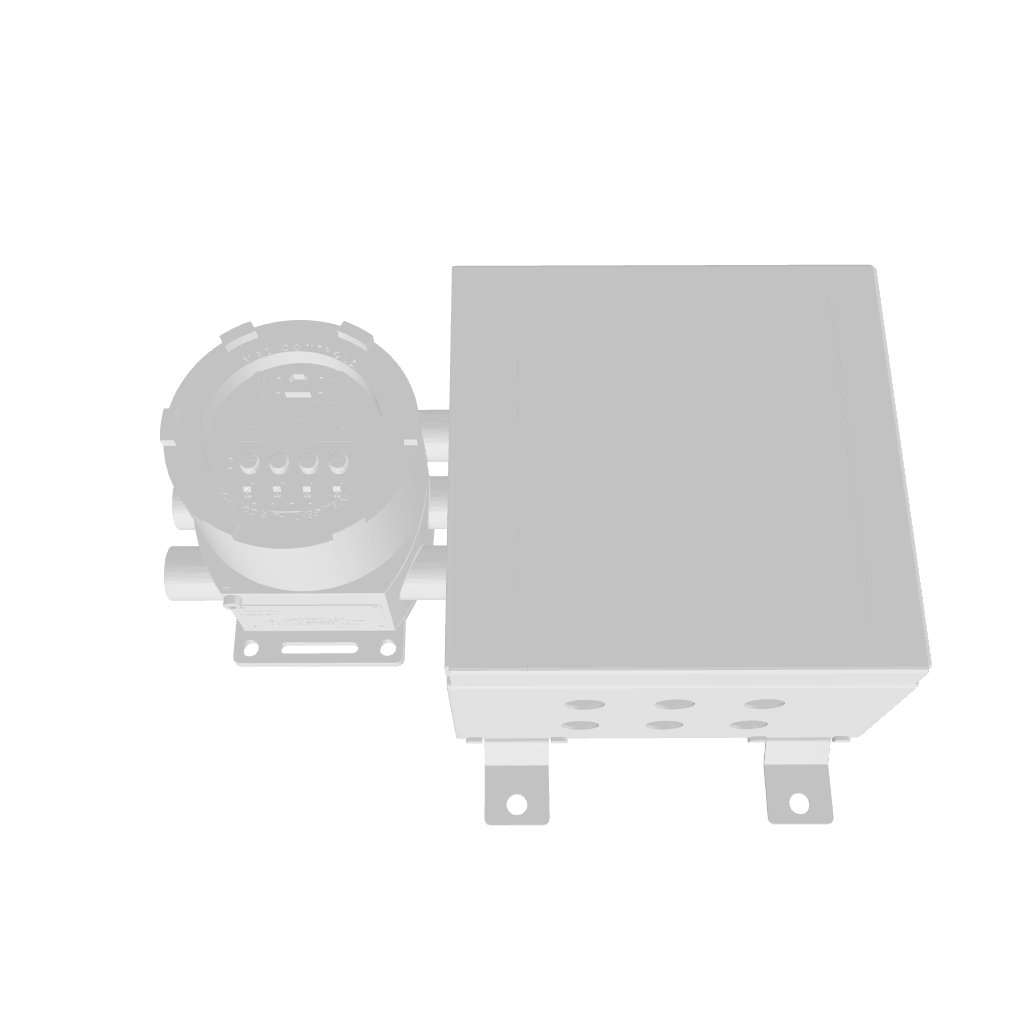

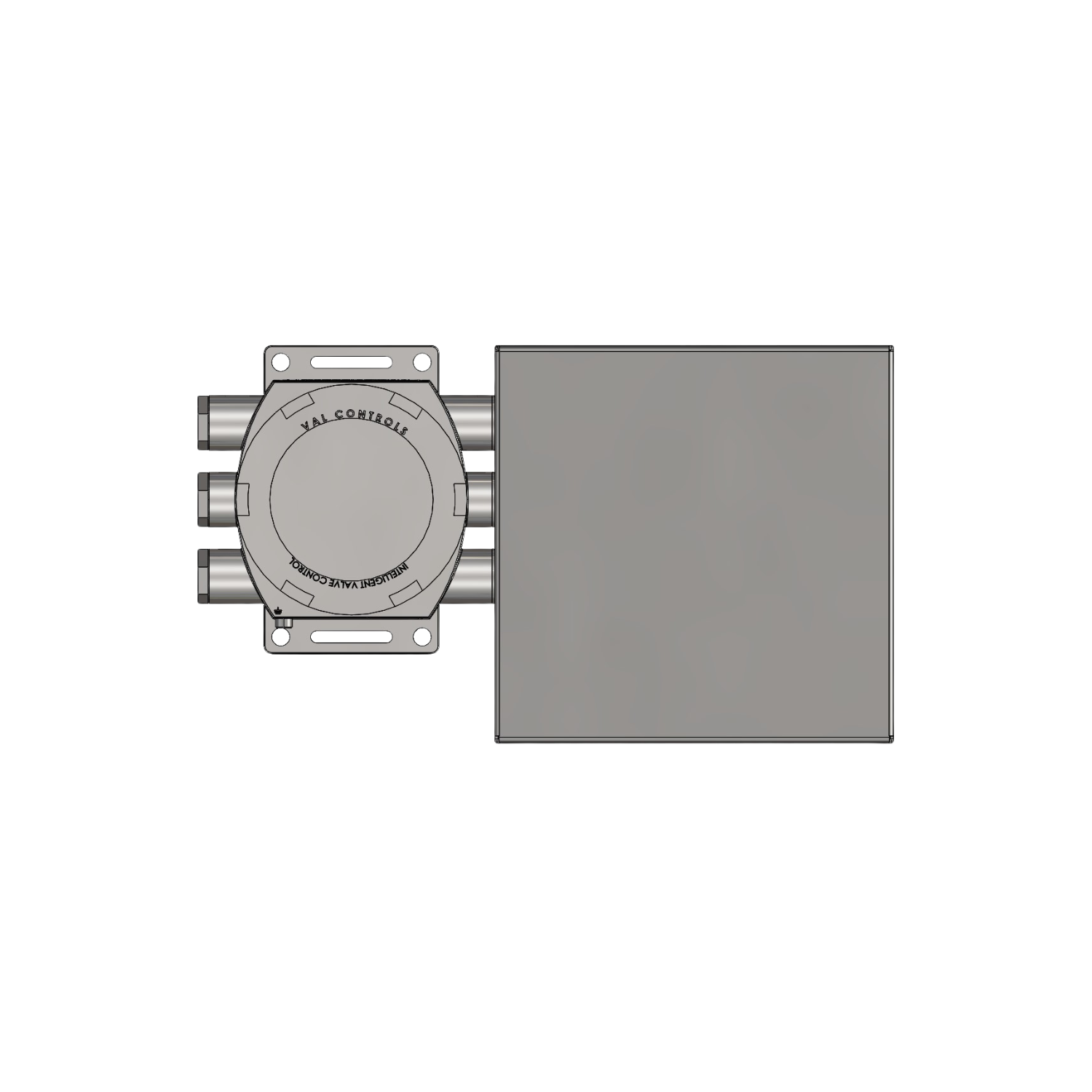

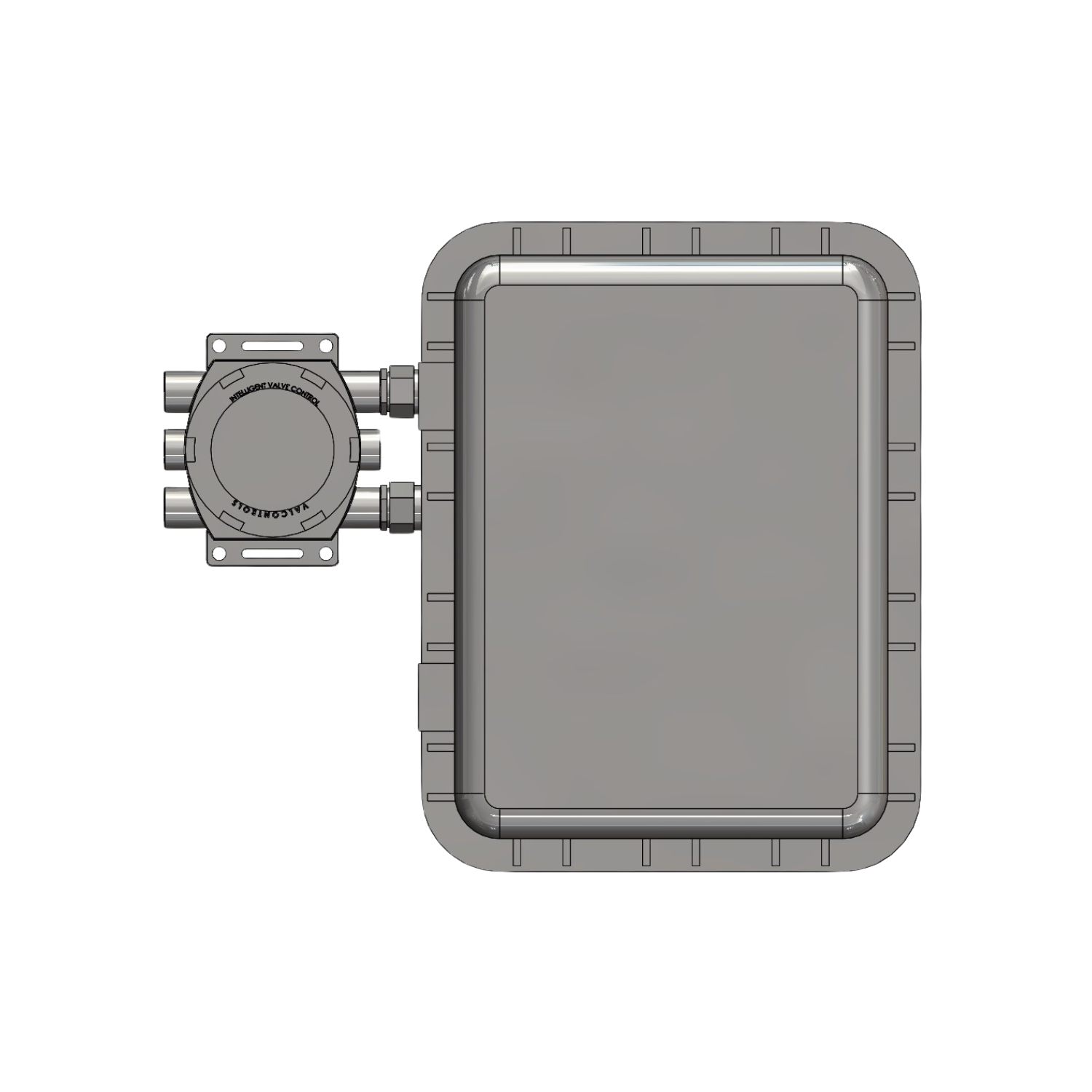

The ILB24-AF is available in various enclosure types, all suitable for hazardous environments and certified with the necessary area approvals.

Ex approvals

ATEX, IECEx

Ex certification

II 2 GD Ex de IIC T4-T6

Approvals and standards

EMC according to IEC 61000

Design

Temperature range: -30°-+60°
Ingress protection: IP66
Enclosure material: SS316L

Communication

Modbus

Power

24VDC – unit power consumption <2W

ILB24-AF

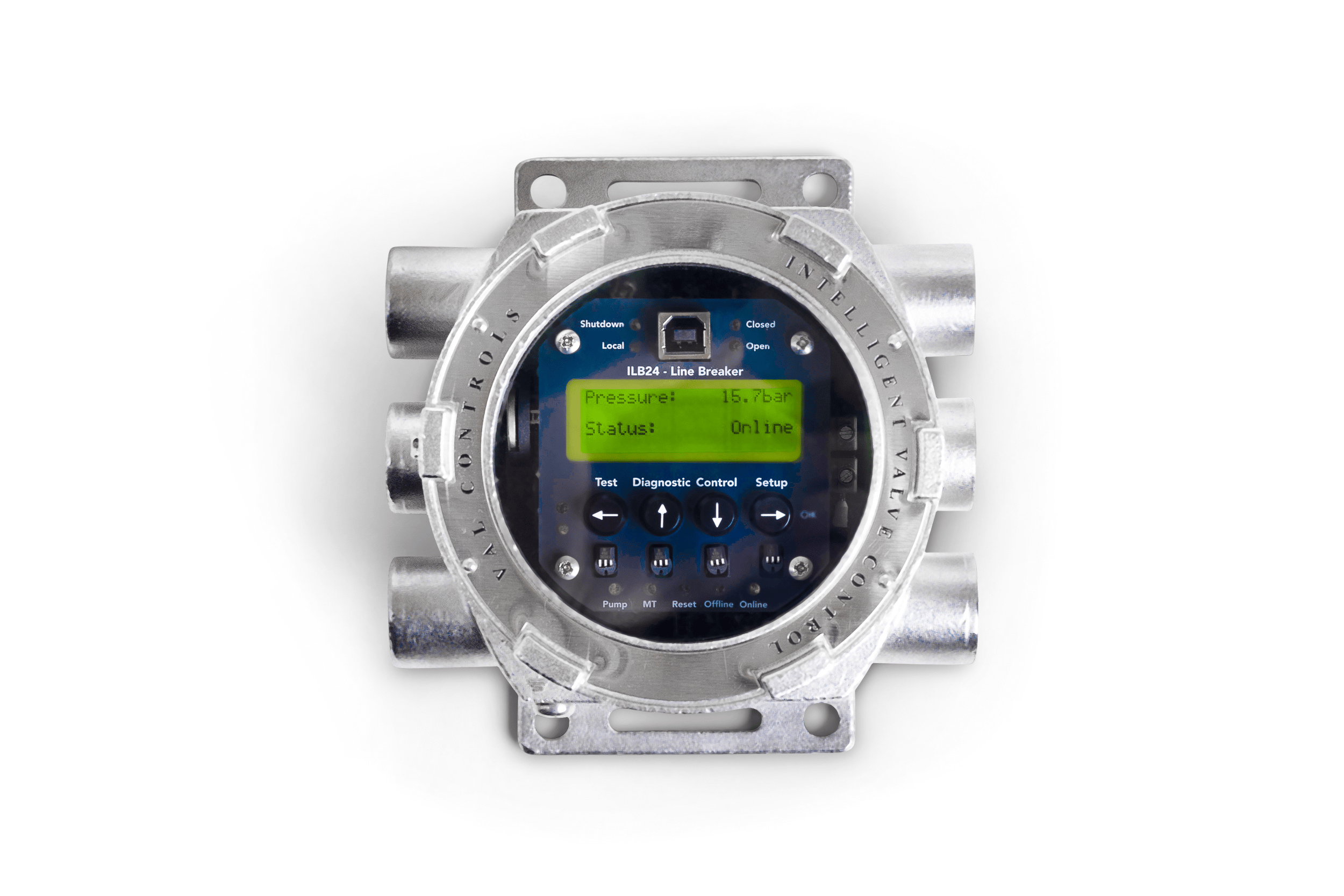

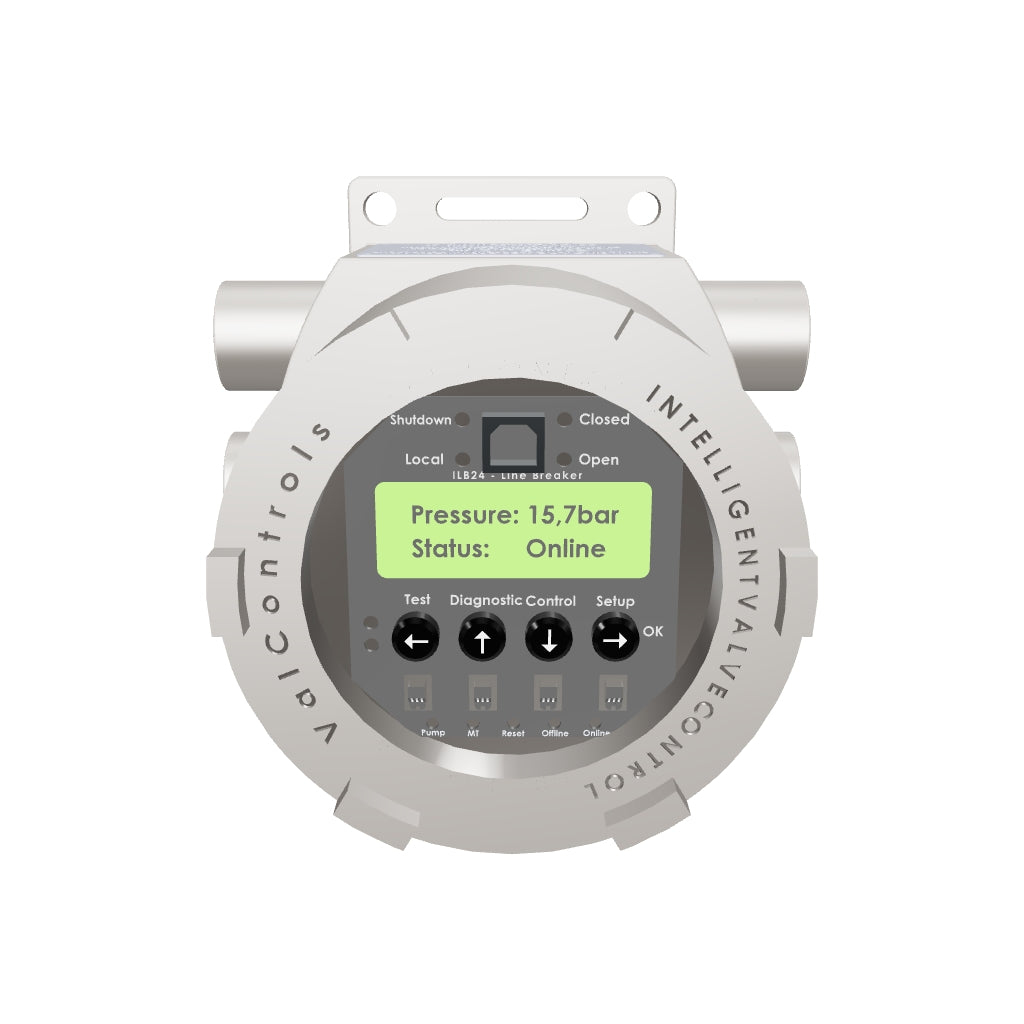

User interface and MTControl

User interface for both configuration and use.

  • Graphical display and control buttons
  • System and indicator LEDs
  • USB
  • MTControl

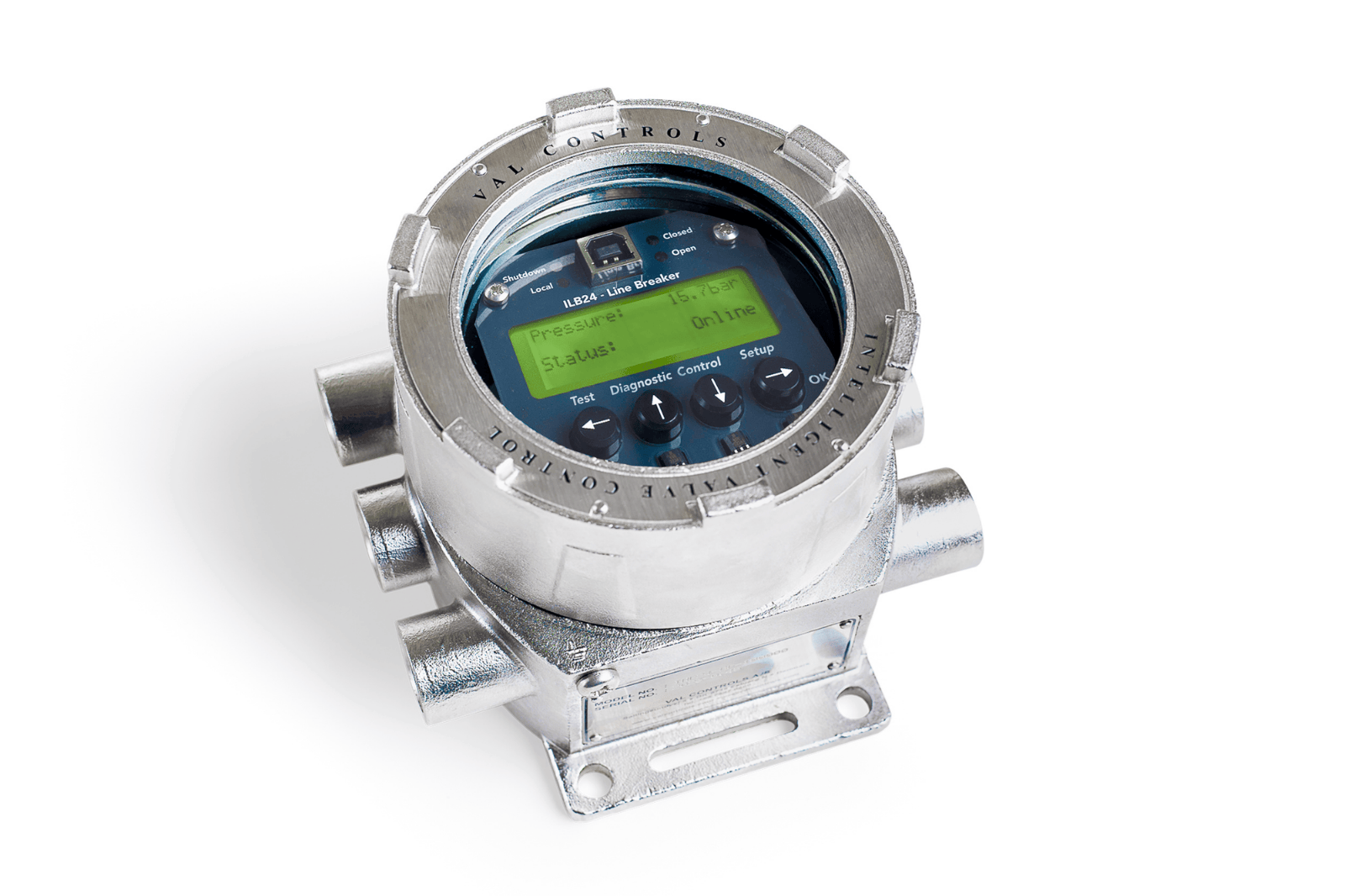

Certification and material

Housing is manufactured by SS316L.

Certified ATEX and IECEx.
