IDC24-CF

SKU: IDC24-CF-12

Pressure range: 0-16bar

Datasheet

ValConnect - Configuration and test software

Product details

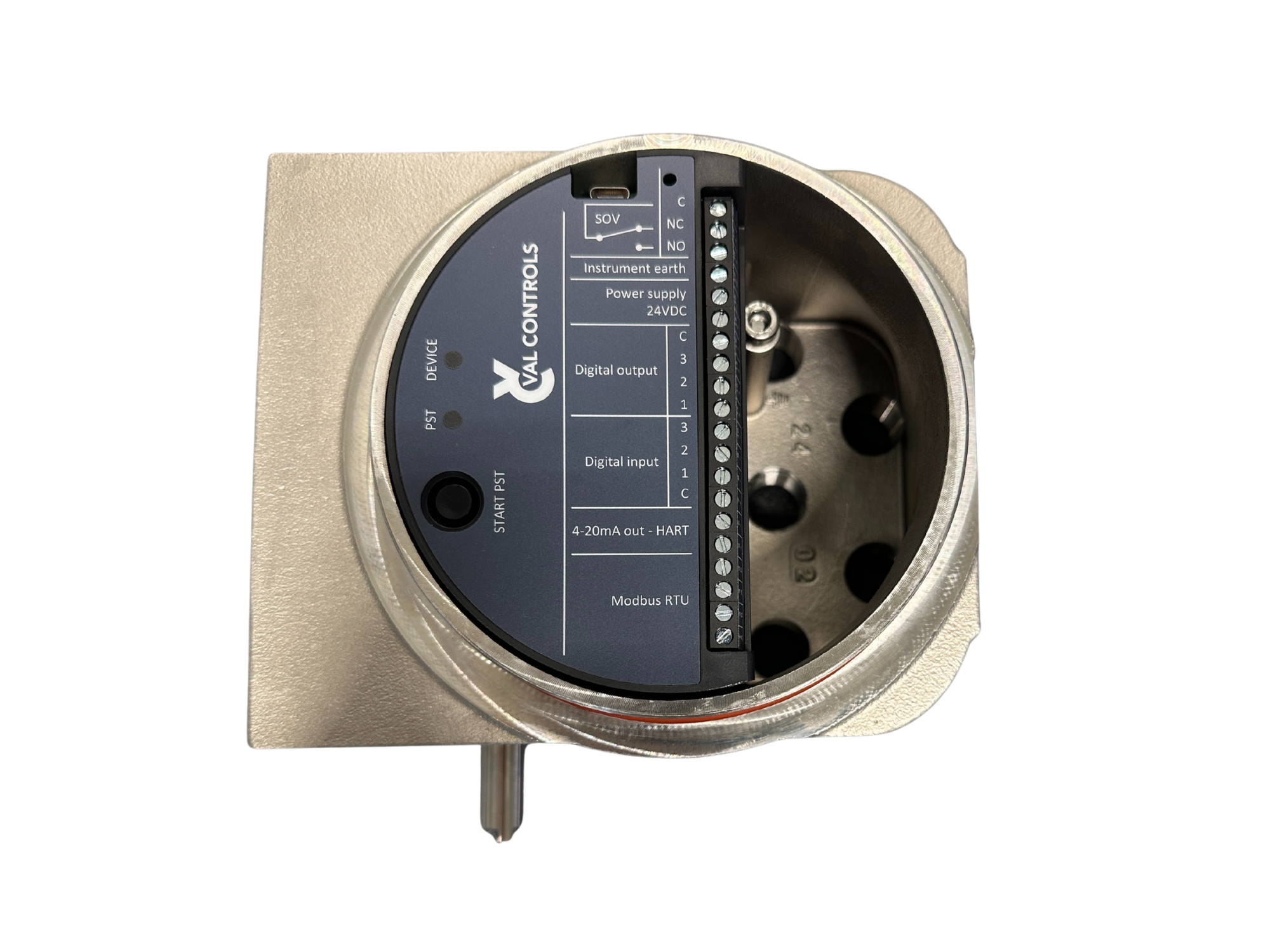

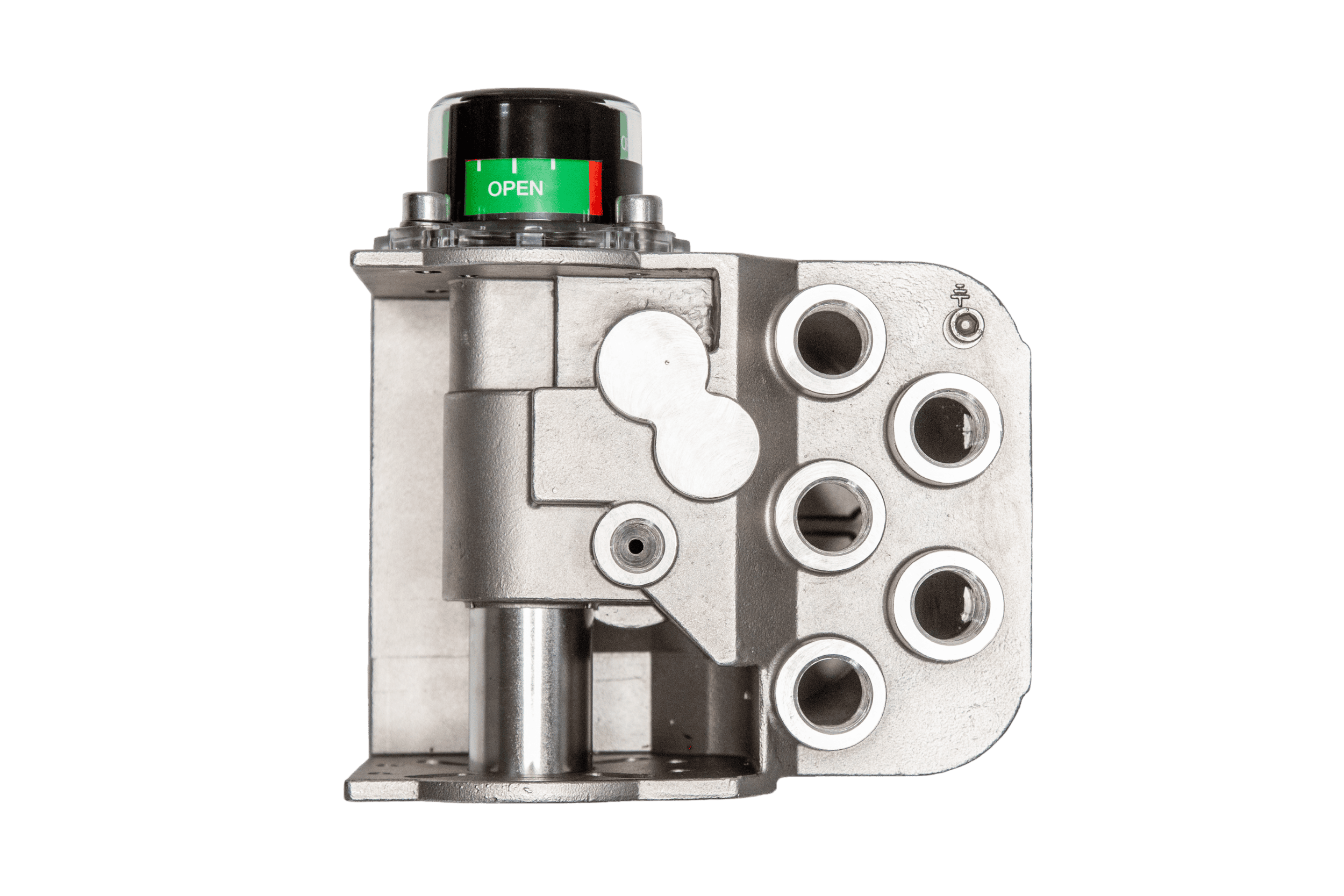

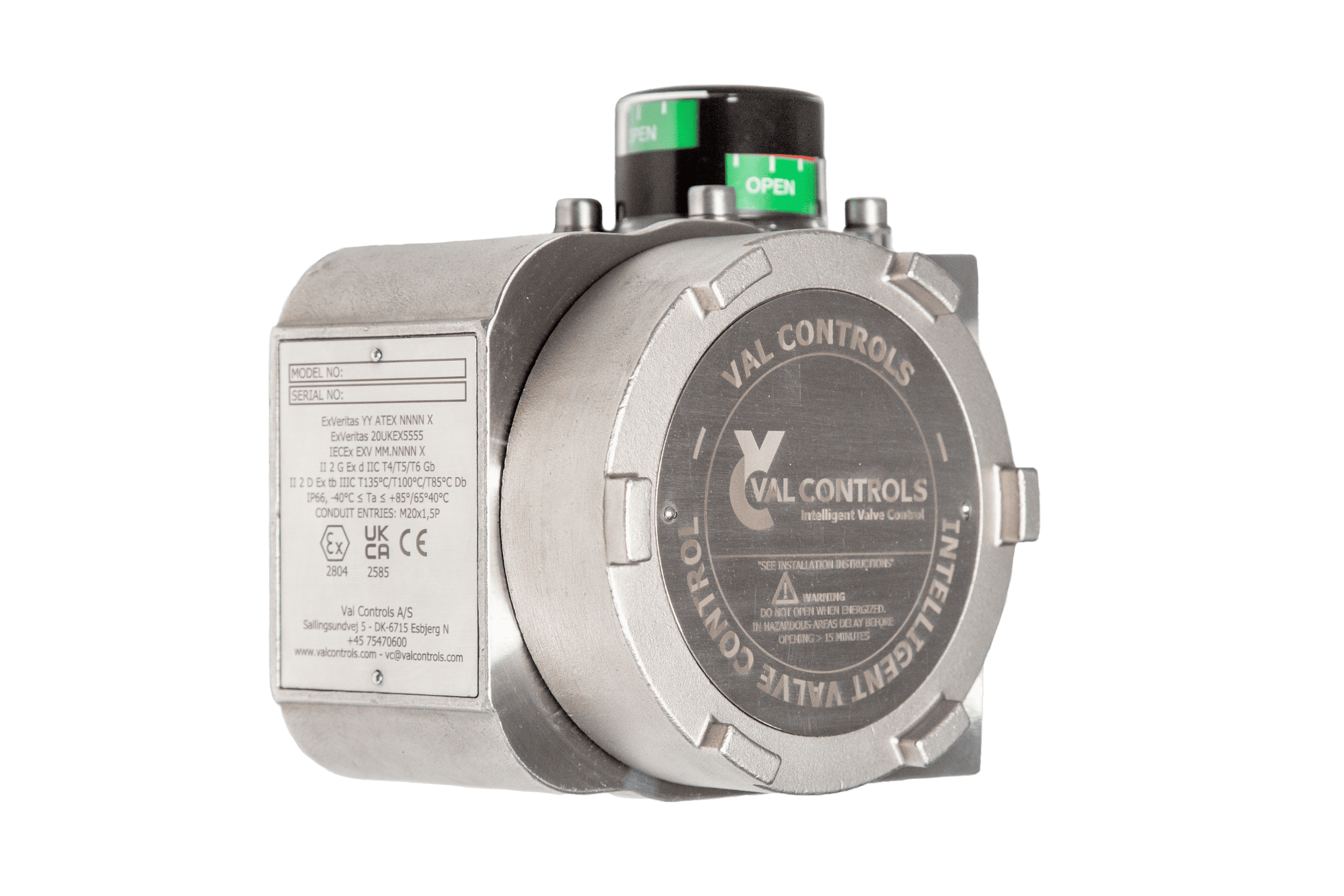

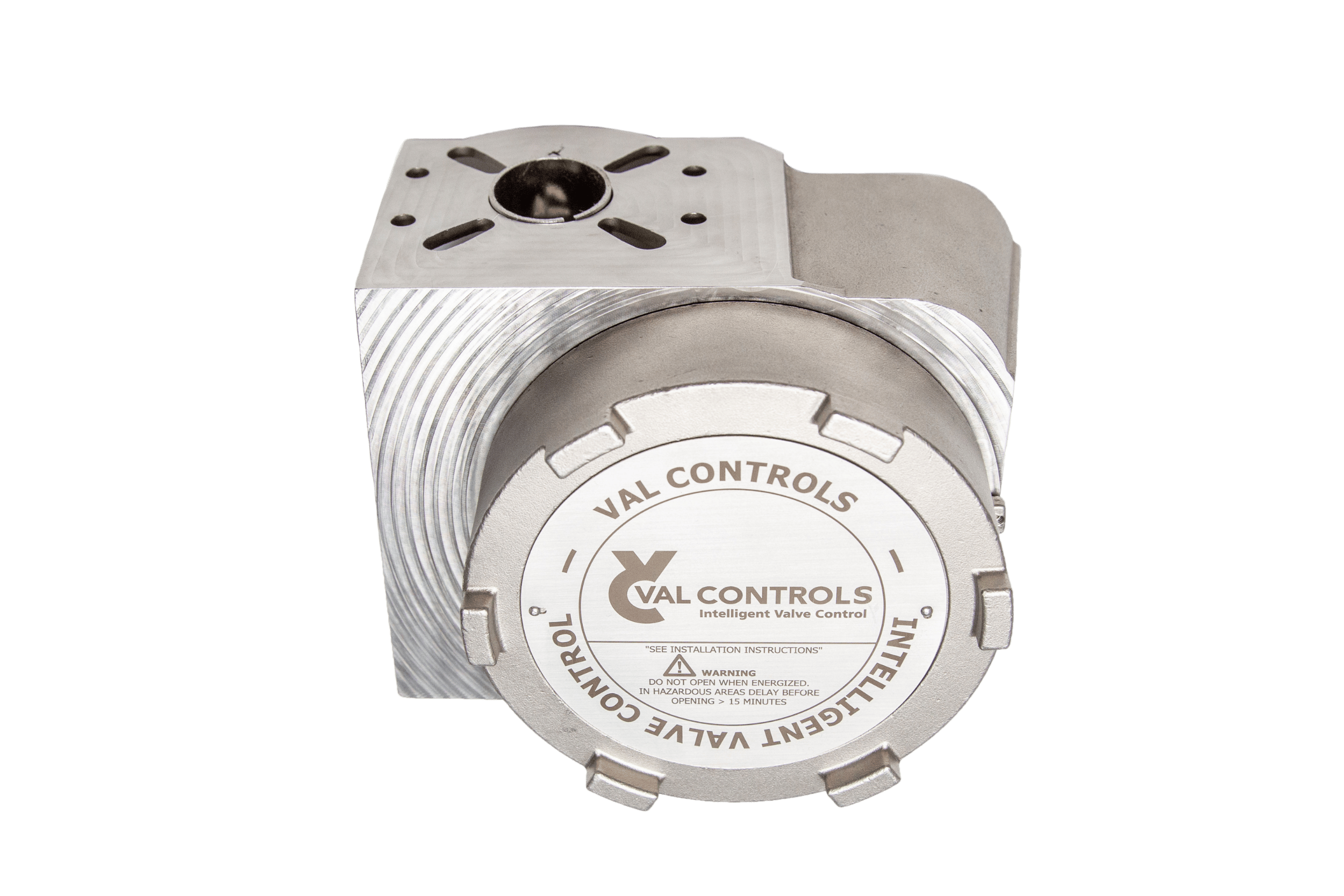

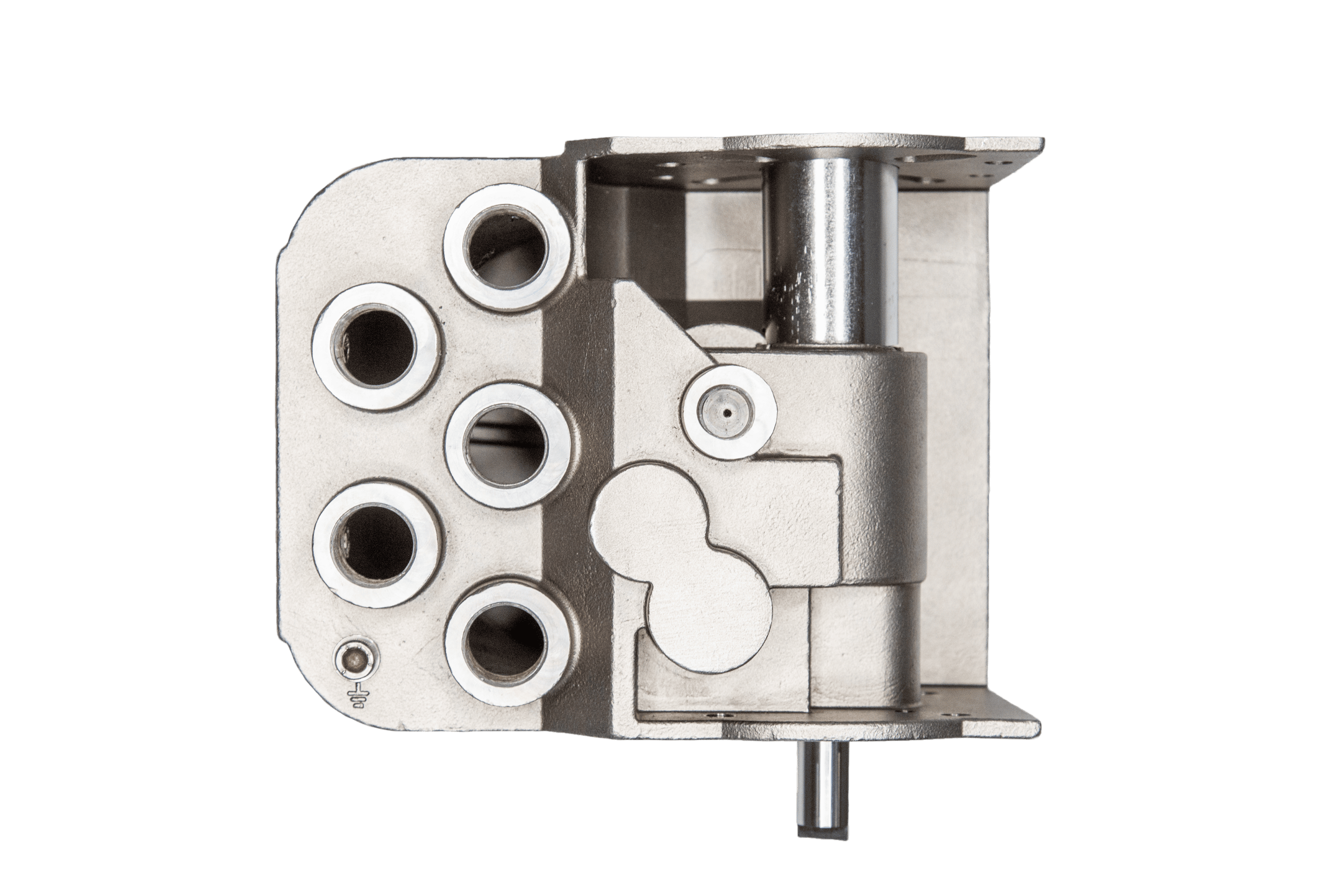

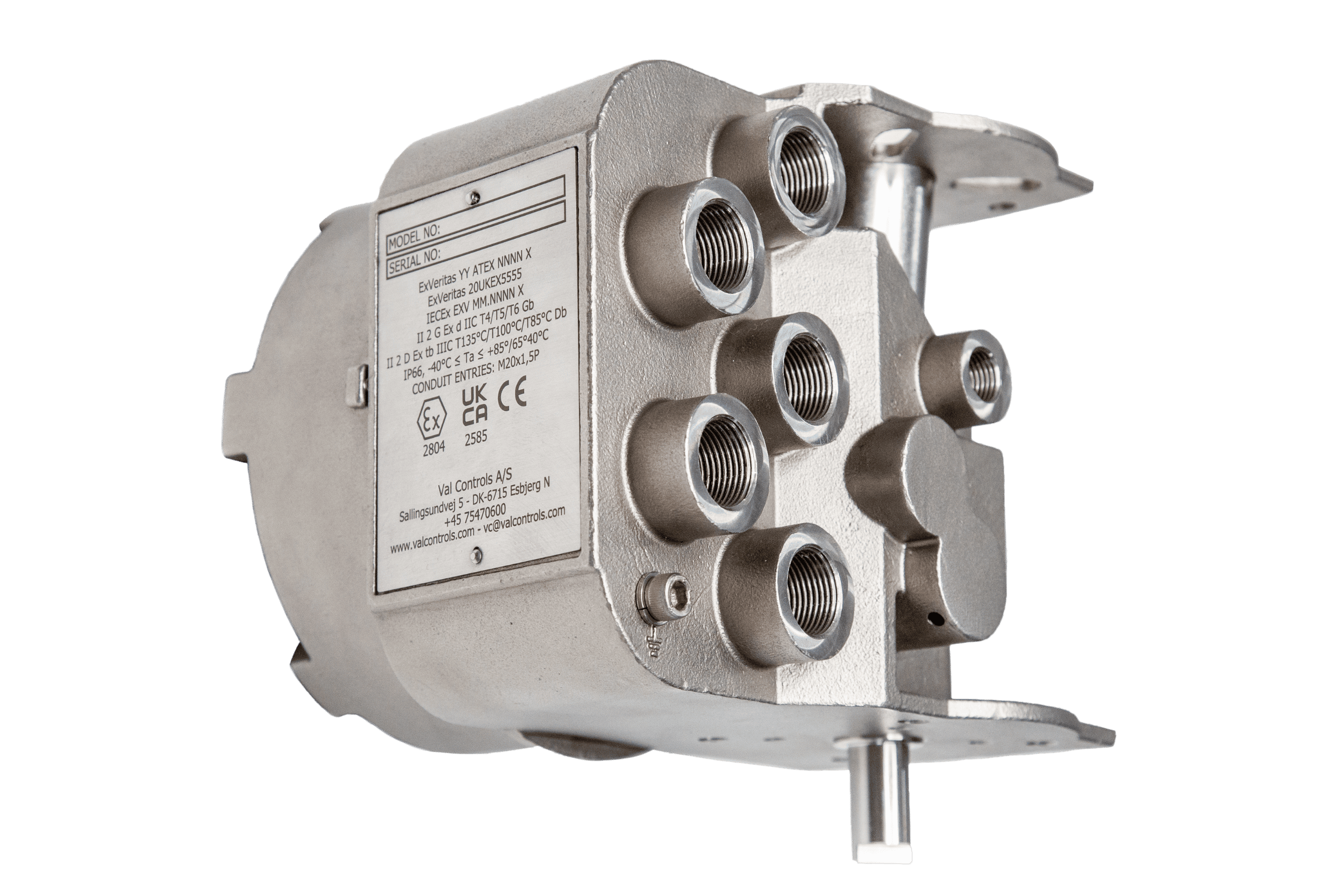

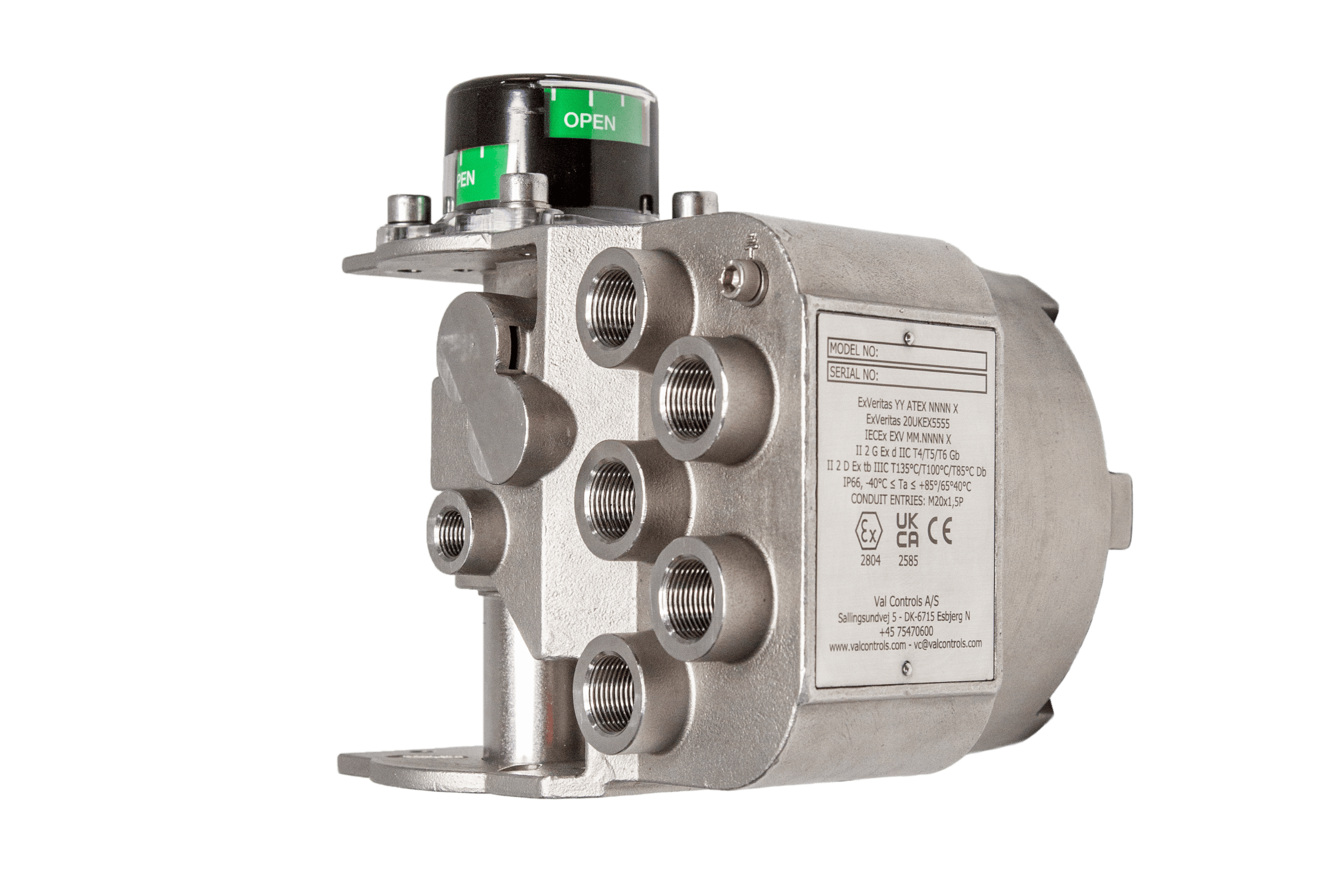

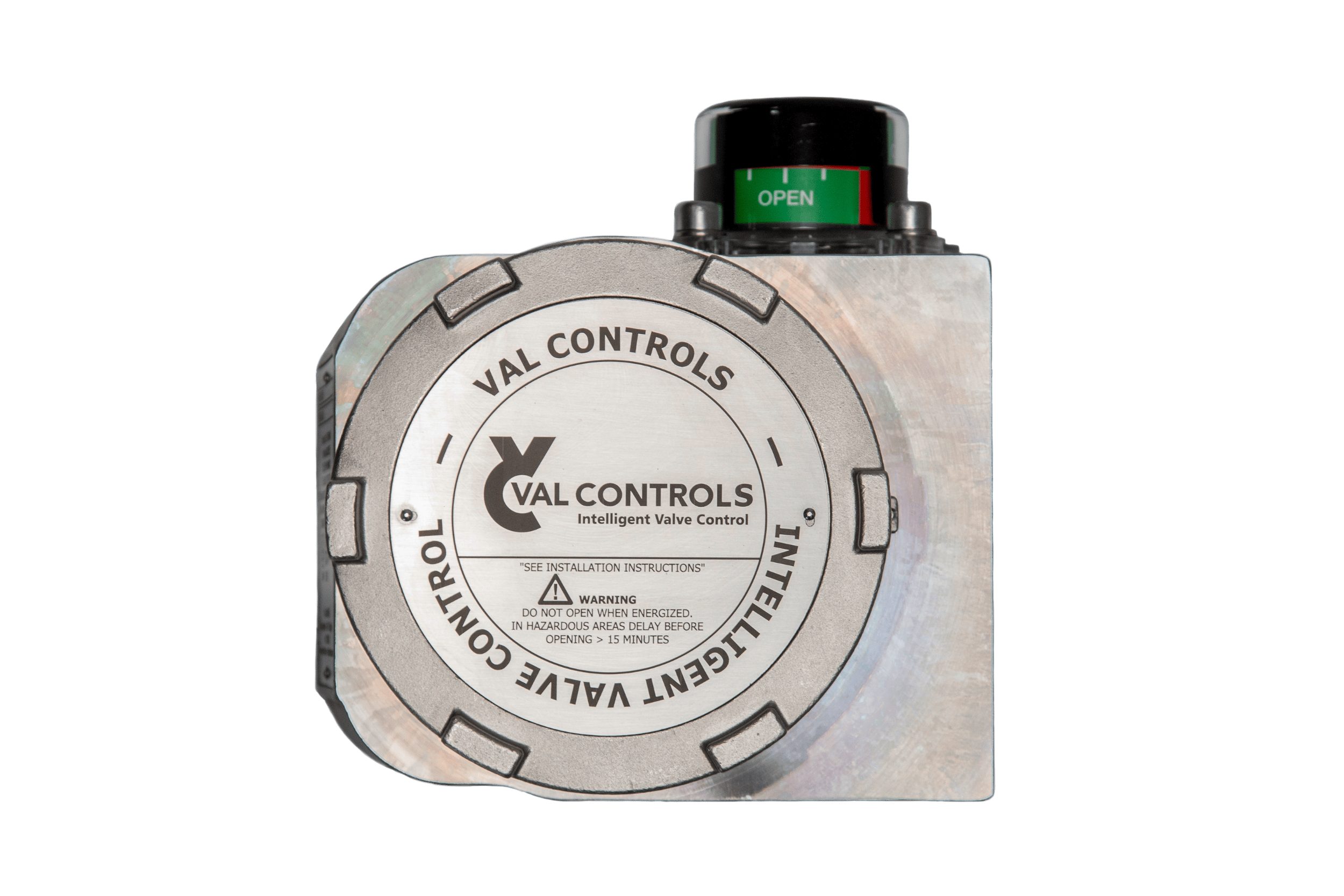

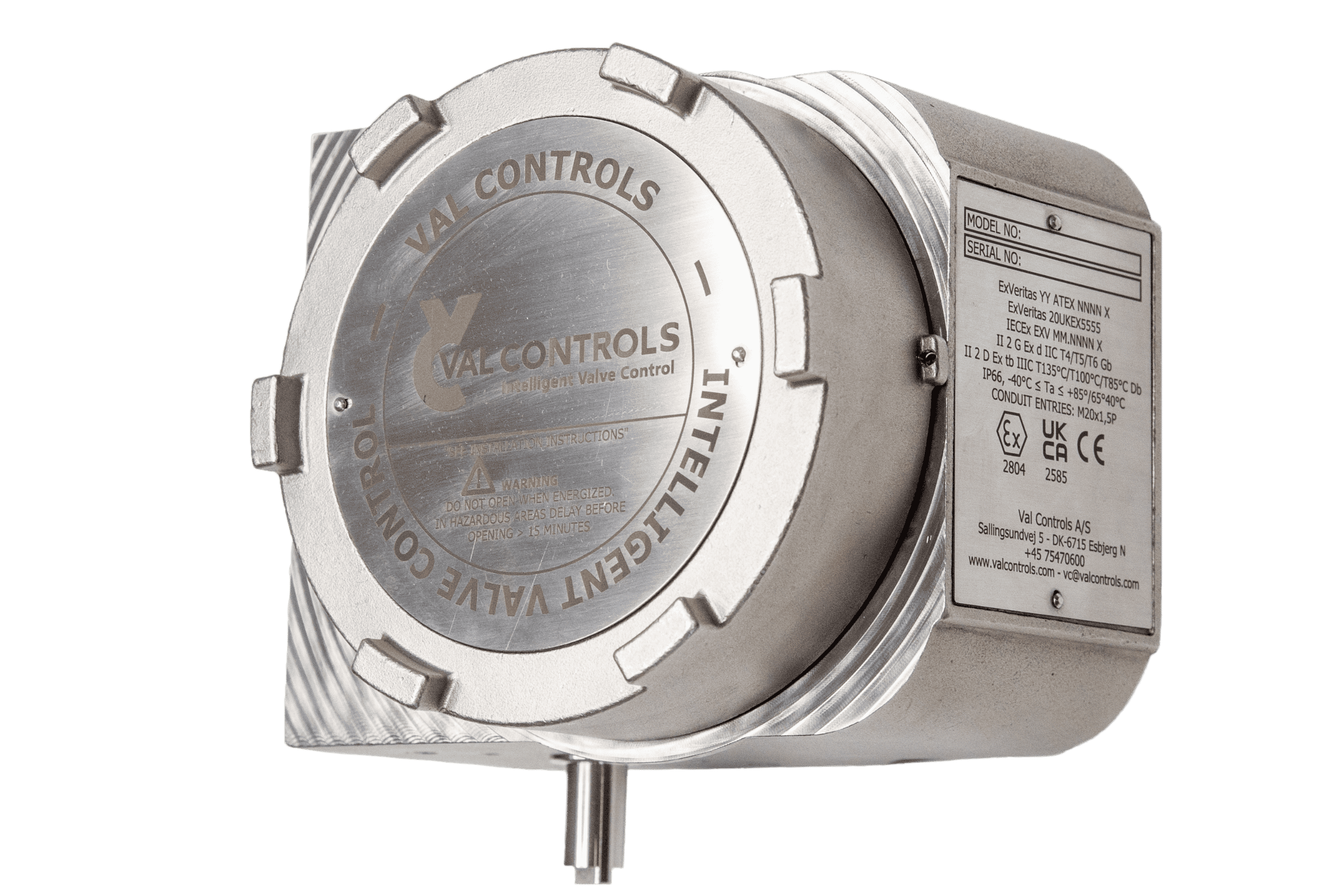

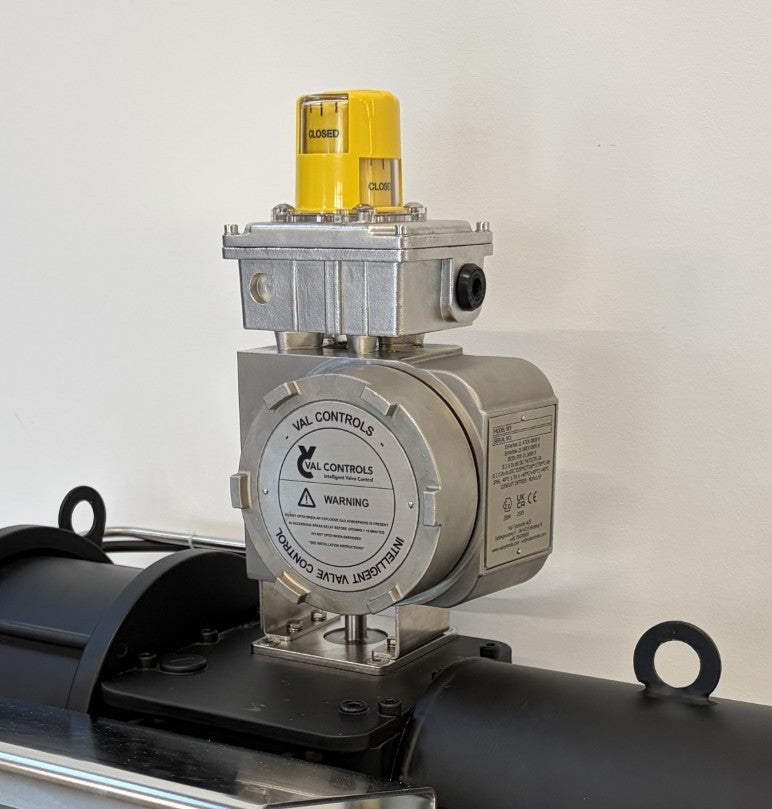

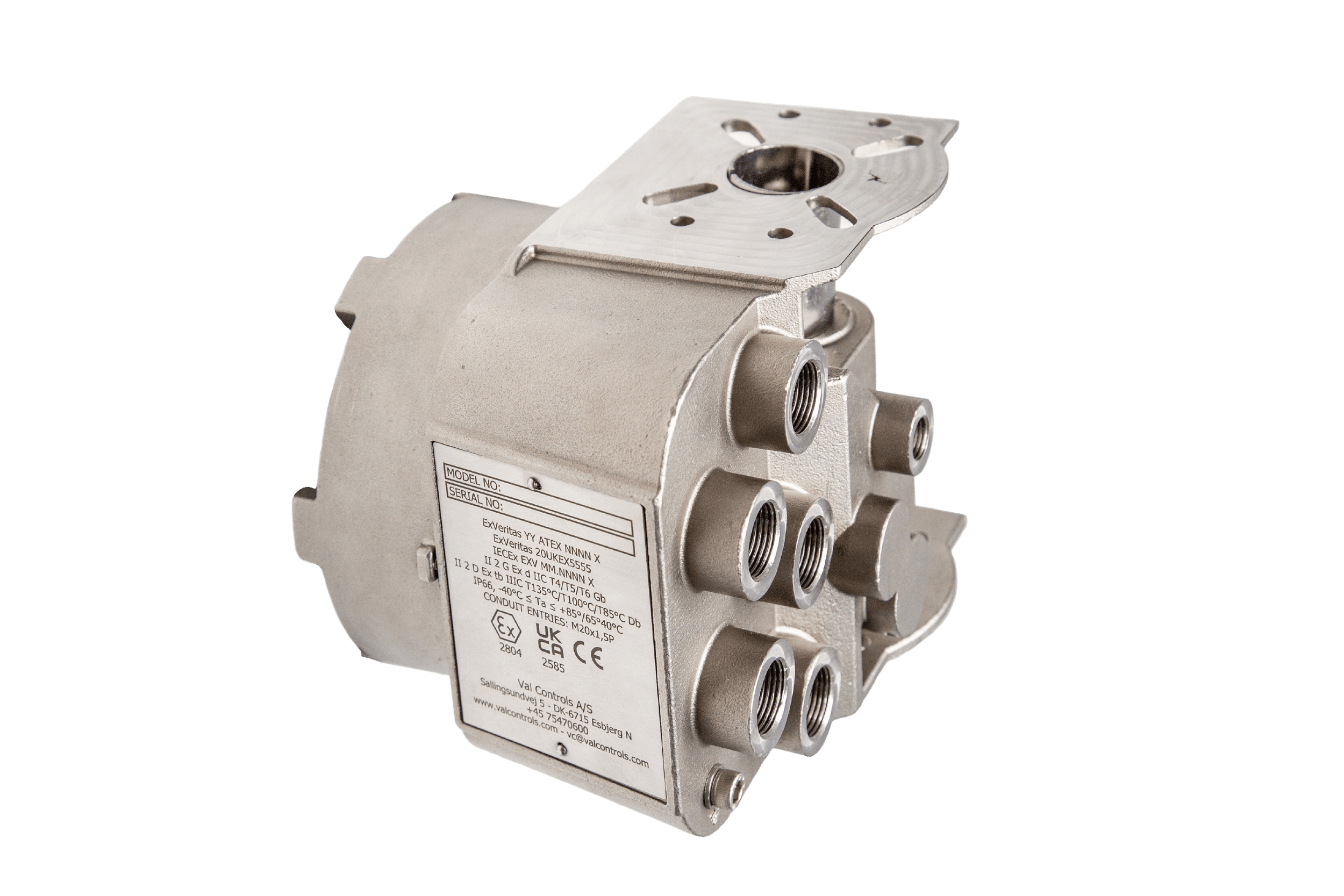

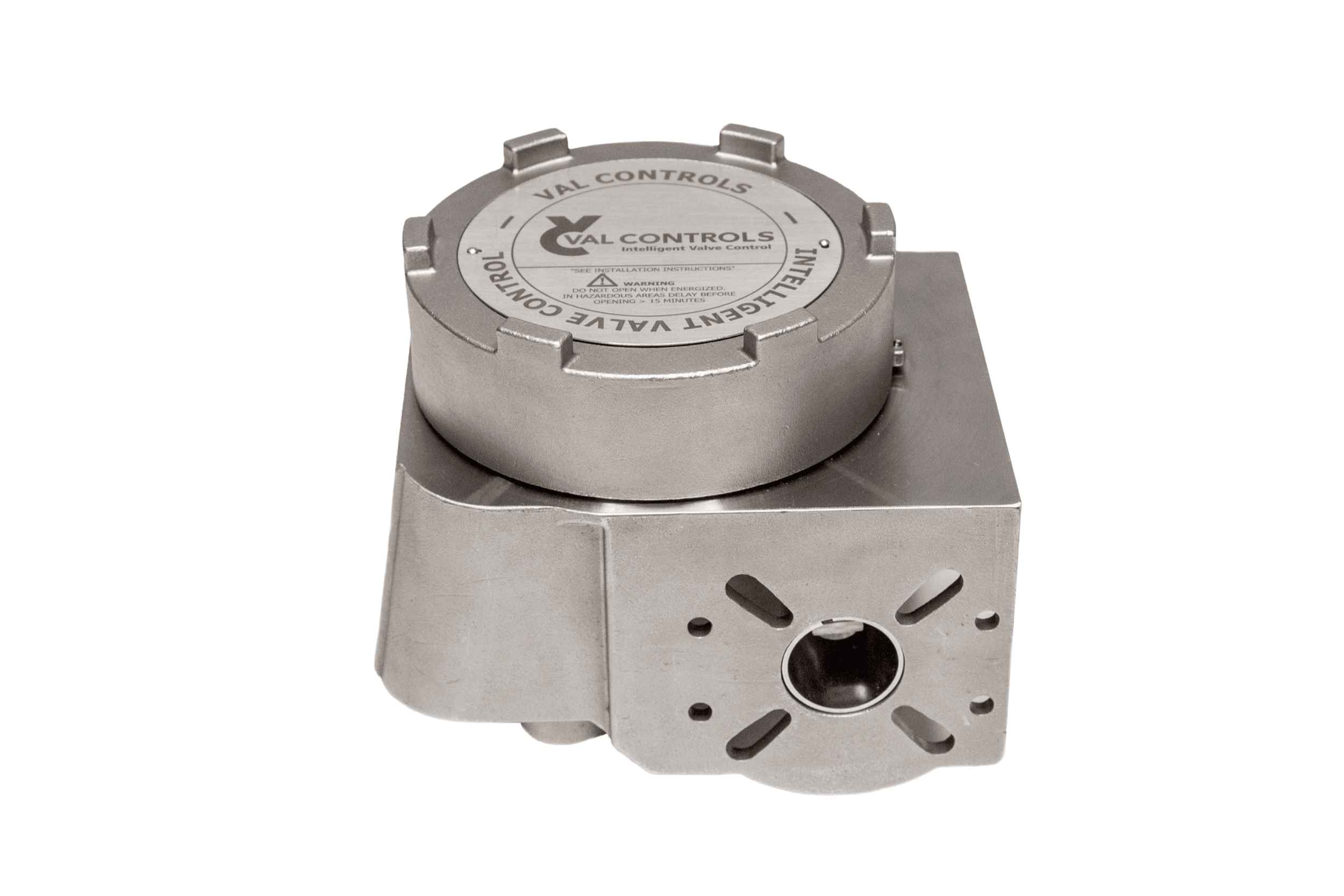

The IDC24-CF is an intelligent Partial Stroke Test controller for spring-return actuators, housed in a compact SS316L enclosure designed for Ex areas. The enclosure features gland holes and accessible mounting brackets for easy installation.

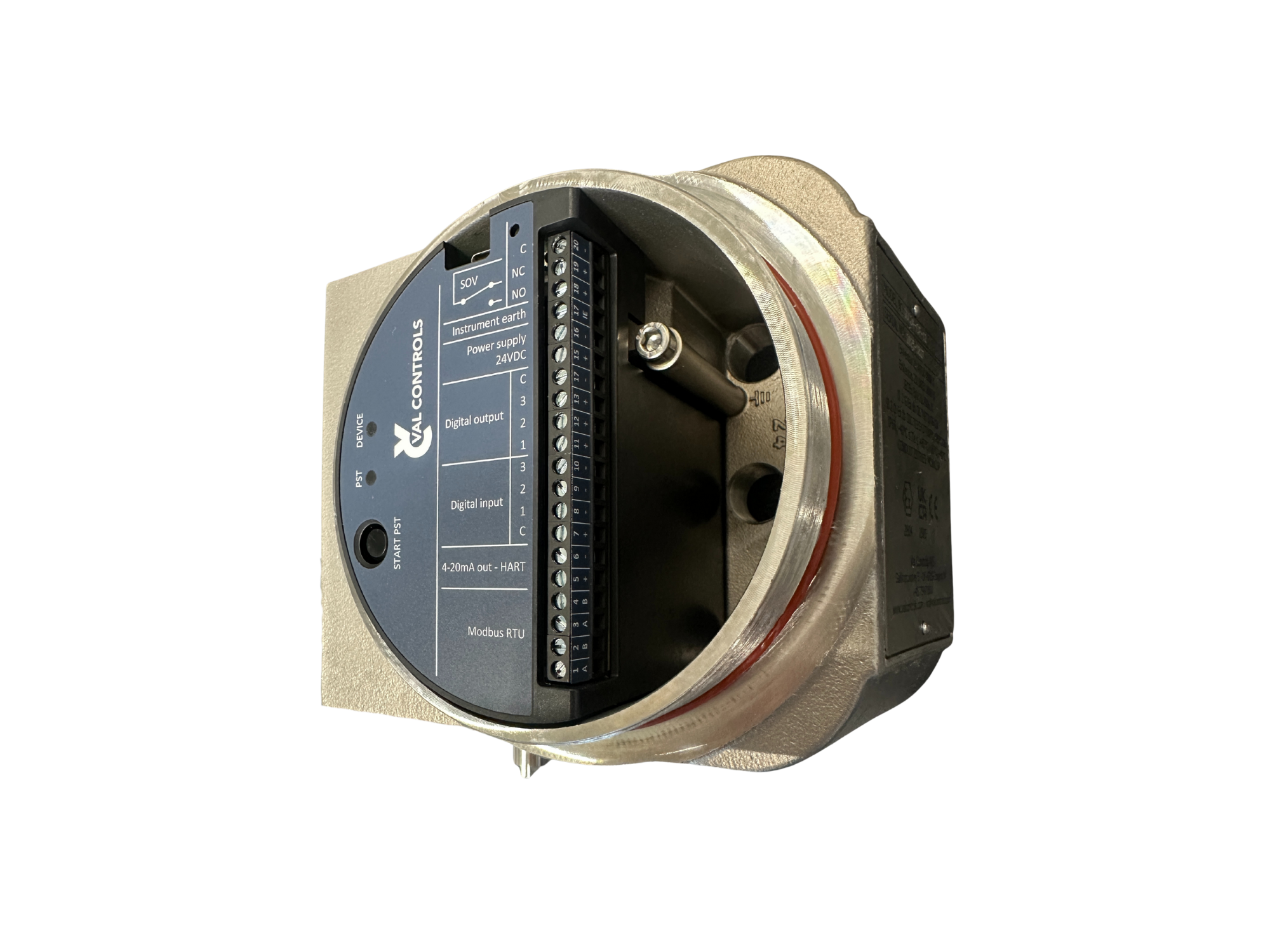

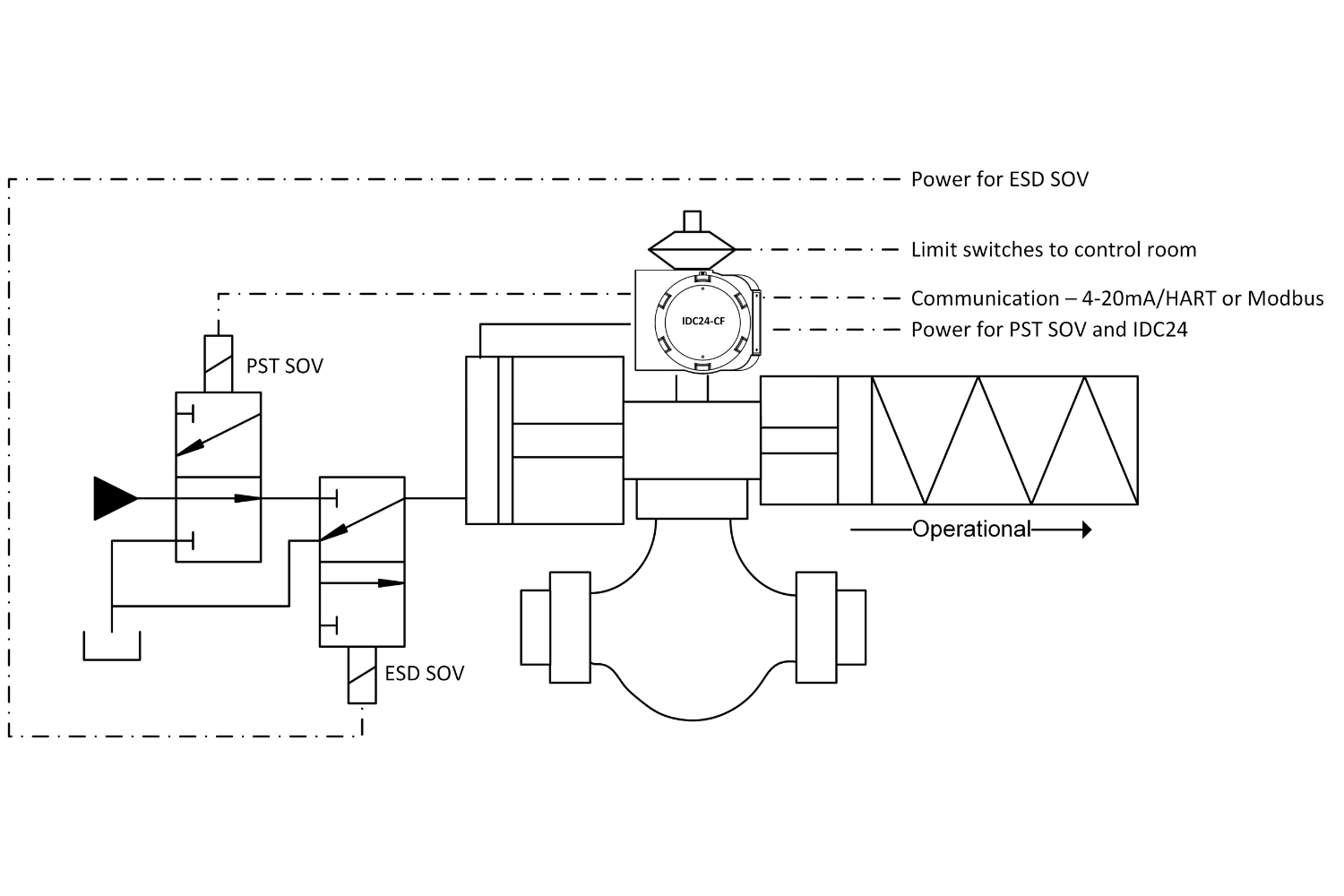

Equipped with a built-in pressure transmitter and position sensor, the IDC24-CF enables precise solenoid valve testing and accurate actuator position monitoring.

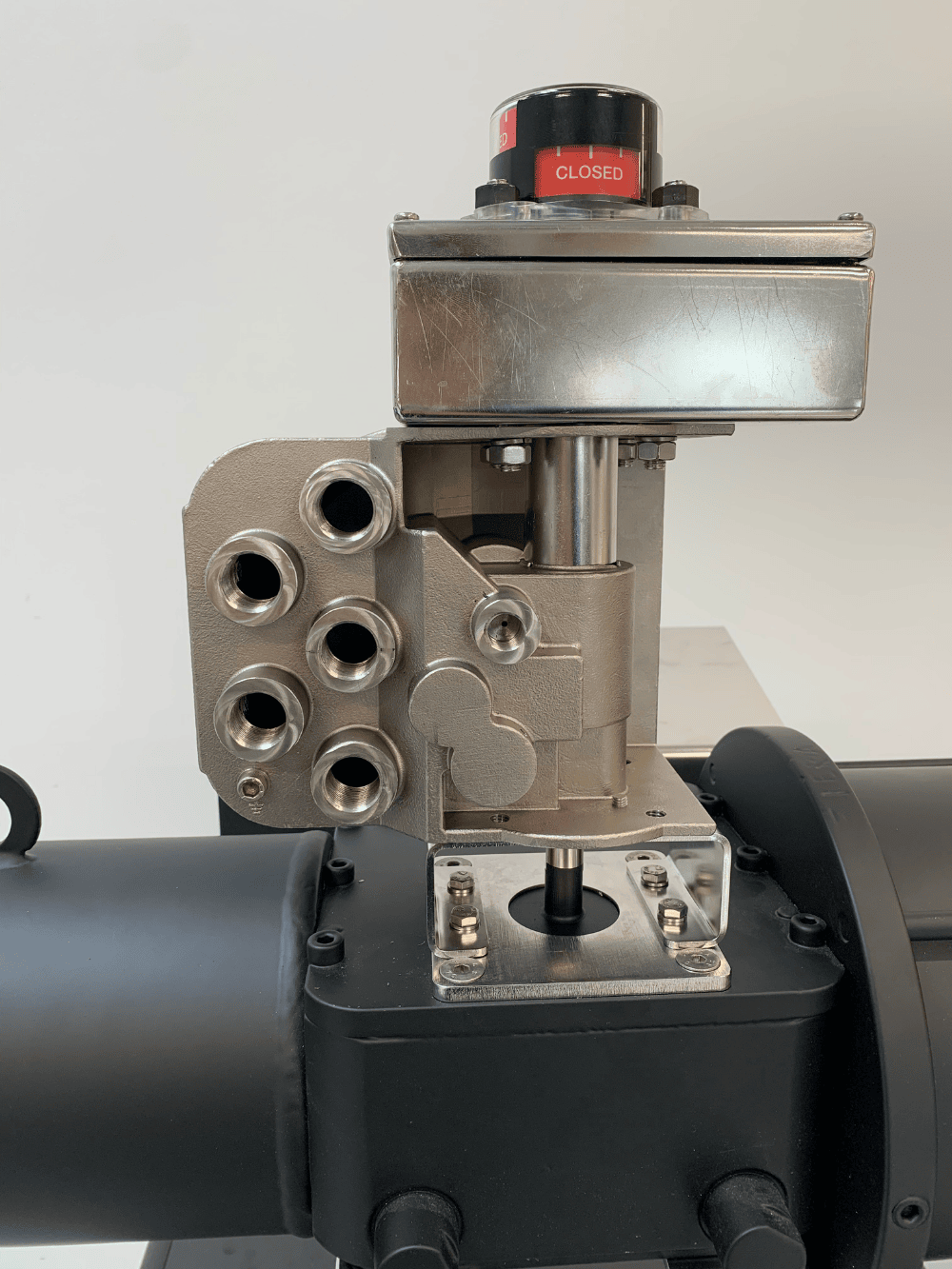

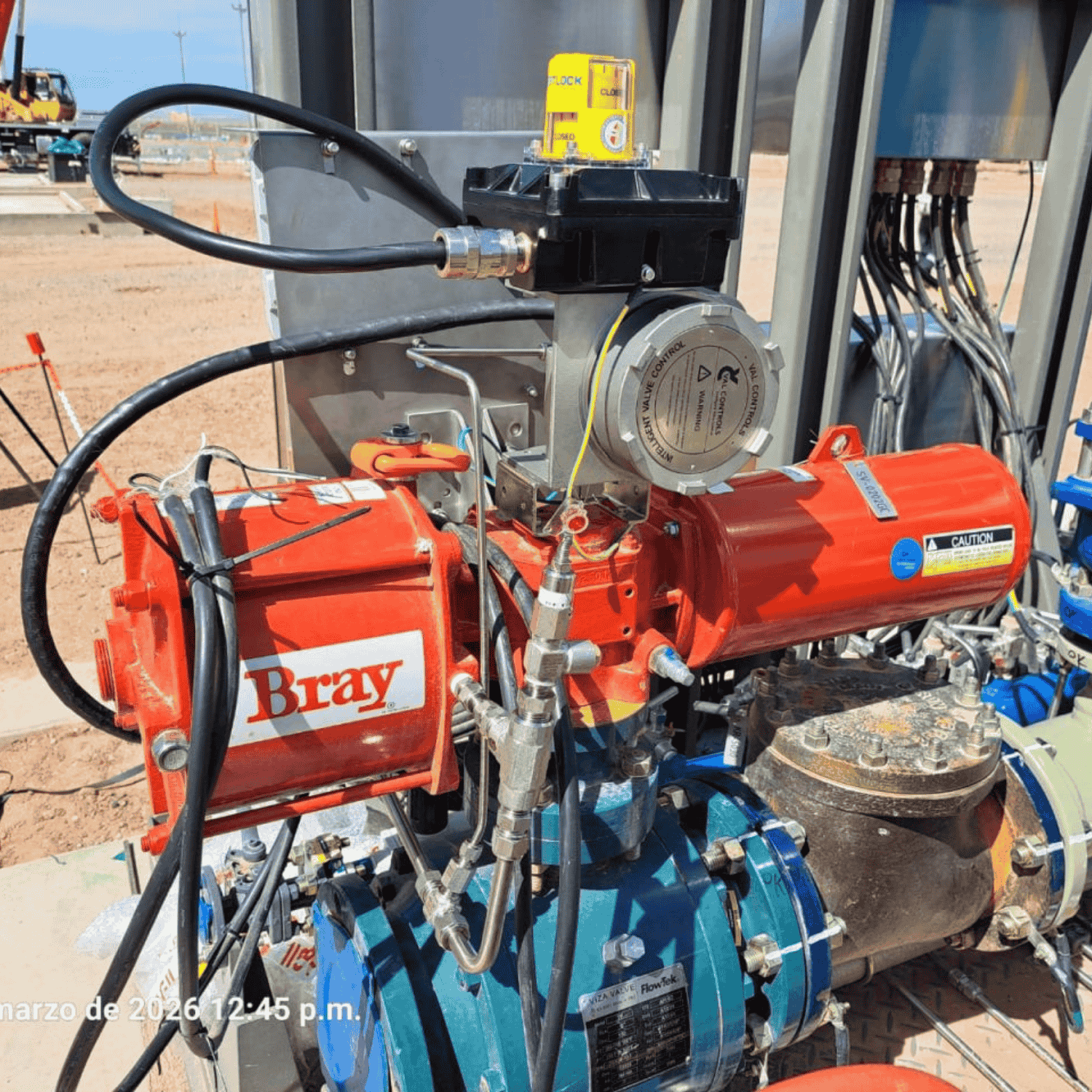

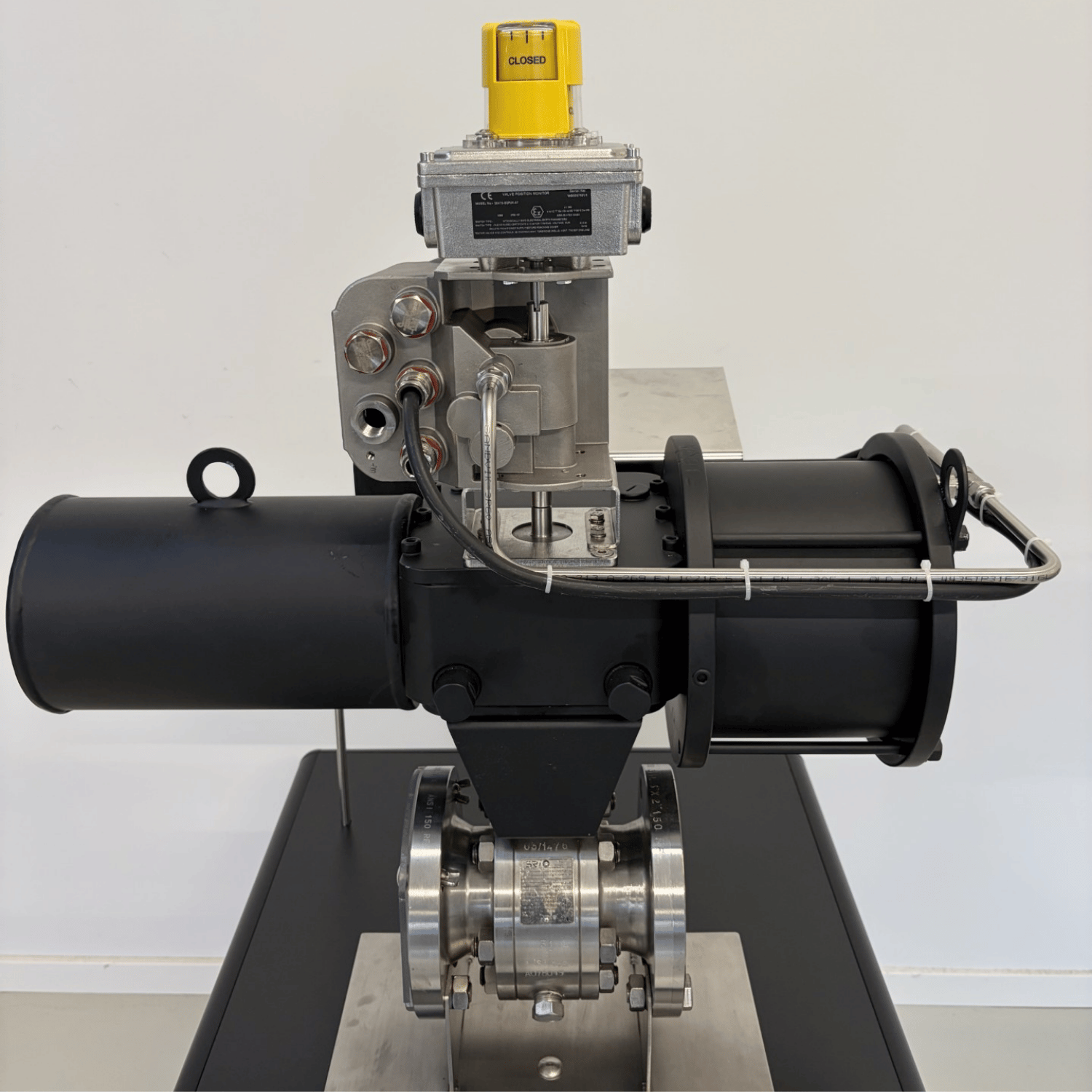

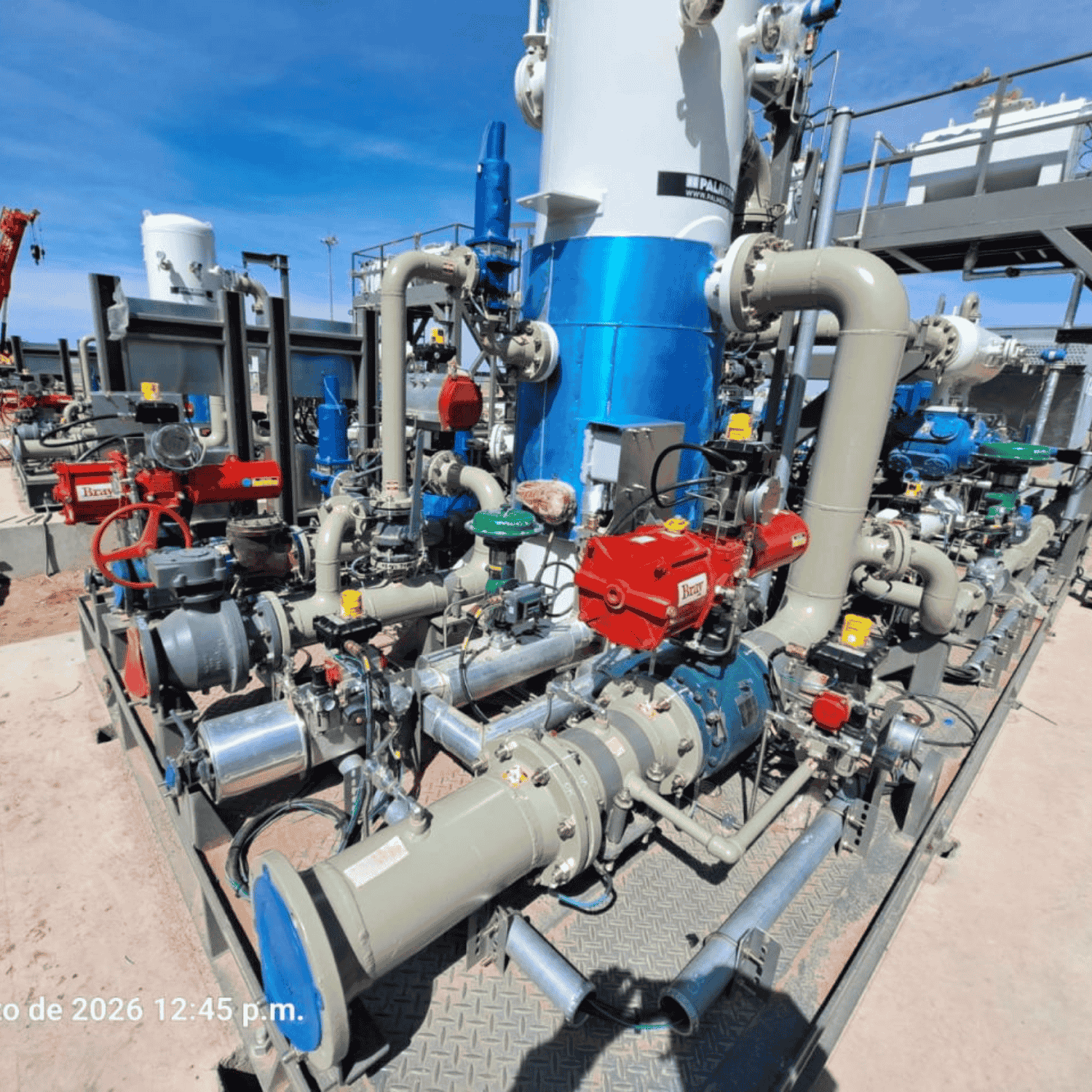

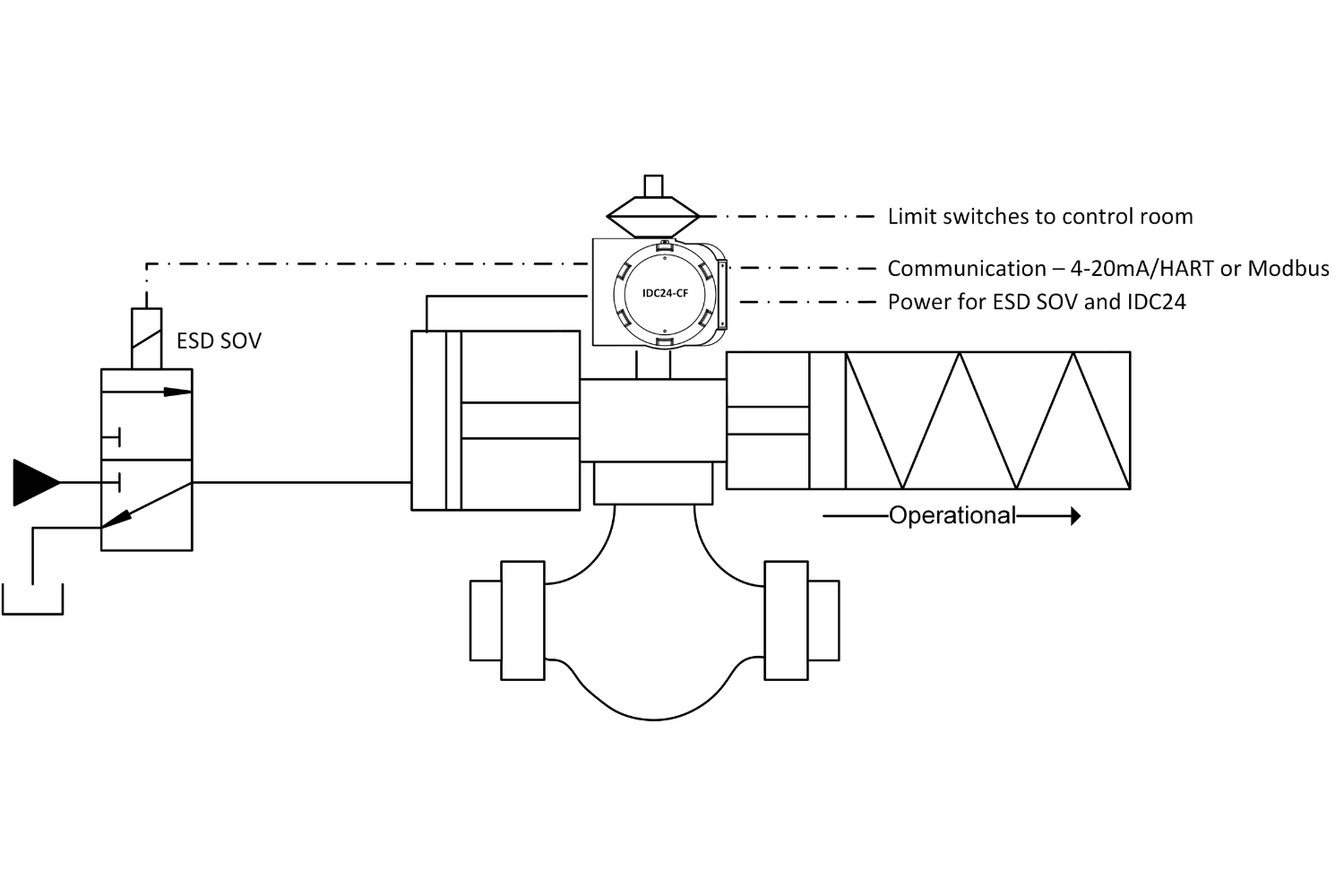

The controller is compatible with hydraulic and pneumatic actuators. It requires no additional wiring, allowing users to retain their current limit switchbox and add the IDC24-CF as an add-on, whether for retrofitting or new installations.

With optional Local Control Panel (LCP) integration, a 4-20 mA signal for position indication, and remote control via HART, the IDC24-CF ensures seamless control and monitoring of actuators.

Design

Operating temperature range: −40°C to +80°C
Ingress protection: IP66
Enclosure material: SS316L (ASTM A351-00 CF3M)

Communication

HART v.7 or Modbus RTU

Approvals and standards

EMC according to IEC 61000

Compliant with IEC 61508 for use in all SIL level applications

Power

24VDC – unit power consumption <2W

Ex approvals

ATEX, IECEx, UKCA and ECAS-Ex
II 2 GD Exd IIC T4-T6

Sensors

Built-in sensors:

Position sensor
Pressure sensor

Mounting options

Limit switchbox – compatible with all brands.

Documentation

Manuals

IDC24-CF - IOM

Certificates

Dimensional drawings

Ex certificates

Val Controls

ValConnect - IDC24-CF

Configuration software

ValConnect for the IDC24-CF is a free software tool used to configure the IDC24-CF controller.

To configure the controller, ValConnect must be downloaded to your PC and the PC connected to the USB-port located on the controllers local user interface.

With ValConnect it is possible to:

• Configure multiple units with the same configuration

• Save configuration for documentation

• Update software on the unit

• Monitor and control all in- and outputs

• Perform PST, FST and SOT for a reference signature

• Generate a PDF-report to compare test signatures

Download ValConnect
