Indicators showing the overall system health. Red: Indicates system error Green: Indicates System OK

The LED indicators can display various messages. Valve open or closed Valve movement in progress Test pass Test fail Test in progress ESD active MTControl locked or unlocked Local control mode enabled Pump active

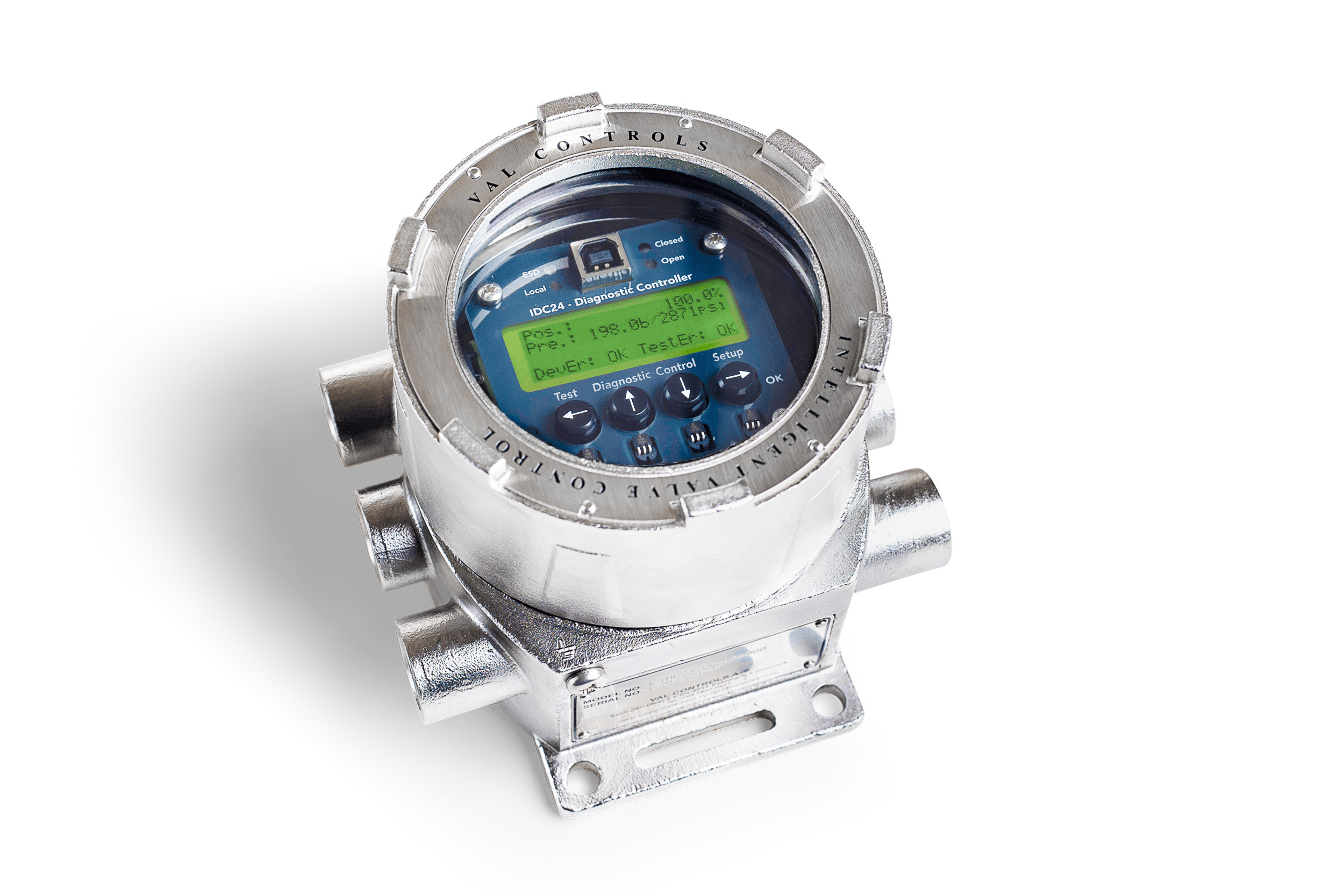

IDC24-AF - Intelligent Diagnostics controller in SS316L housing material. Used for partial stroke testing ESD valves.

Val Controls

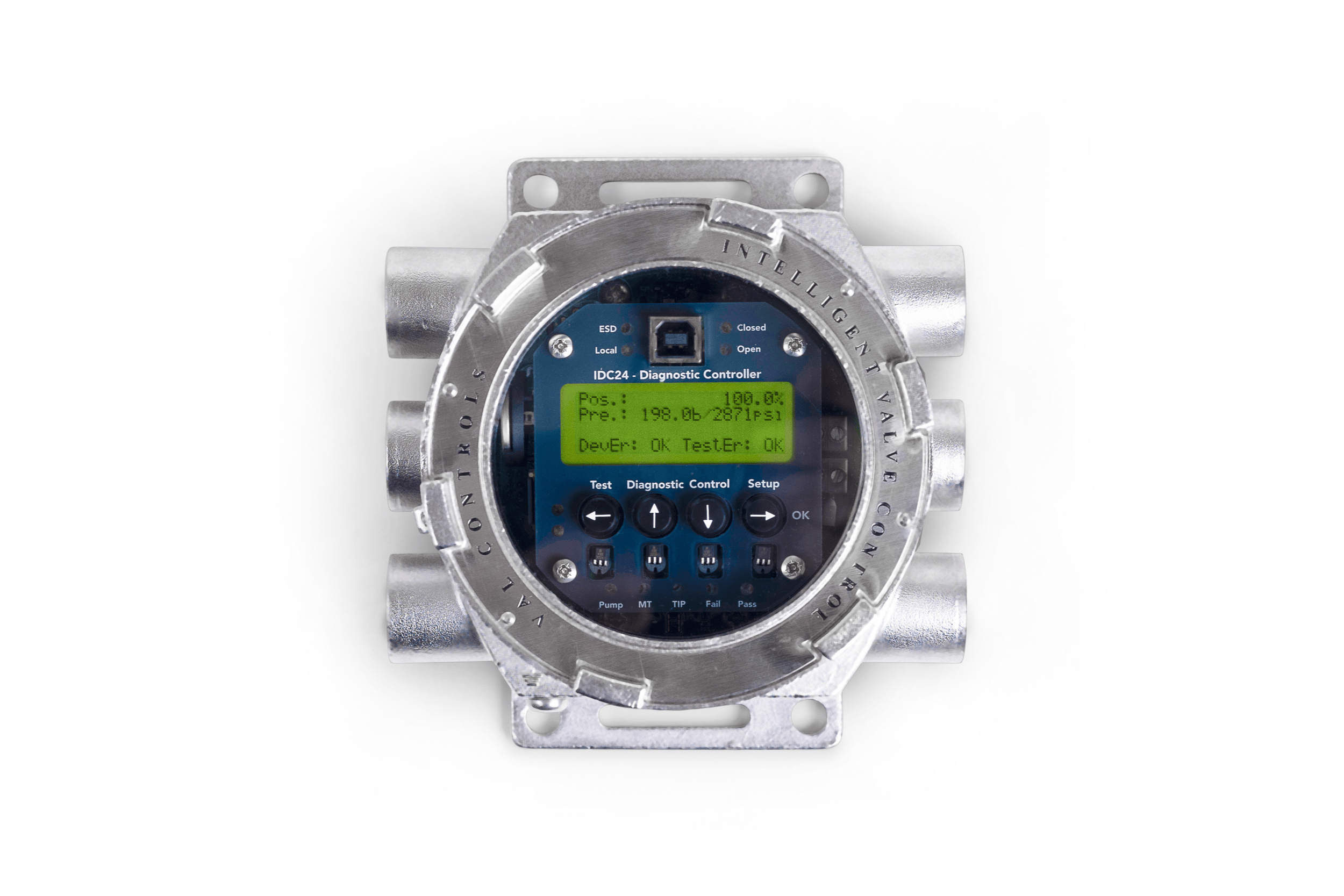

IDC24-AF

Q: Graphical display and control buttons

The display is a four lined graphical display with backlight feature and adjustable contrast. On the display you can see the status of the valve system, check position & pressure, start tests and perform diagnostics.

Q: USB

The USB connection can be used to connect the IDC24 to a PC with ValConnect installed. ValConnect can be used to configure and control the IDC24 from the PC. To learn more about ValConnect click here . * USB function only possible when Exd enclosure is opened Please ensure all safety measures required prior opening an Ex d enclosure.

Q: MTControl

When the IDC24-AF model is installed in a hazardous Area, opening the Exd enclosure is not allowed. The MT Pen can operate the IDC24-AF through the enclosure and the MT Control function locks Automatically after operation to ensure unattended use. The MTControl eliminates the need to open the units Ex D enclosure to operate the push buttons. The magnetic sensors placed below the push buttons, will detect magnetic signals from the MTControl pen provided by Val Controls. To learn more about MTControl click here .

SKU: IDC24-AF-110011

Communication:

4-20mA - HART transmitter loop

Variant

Product line brochure>

Datasheet>

Documentation>

Product details

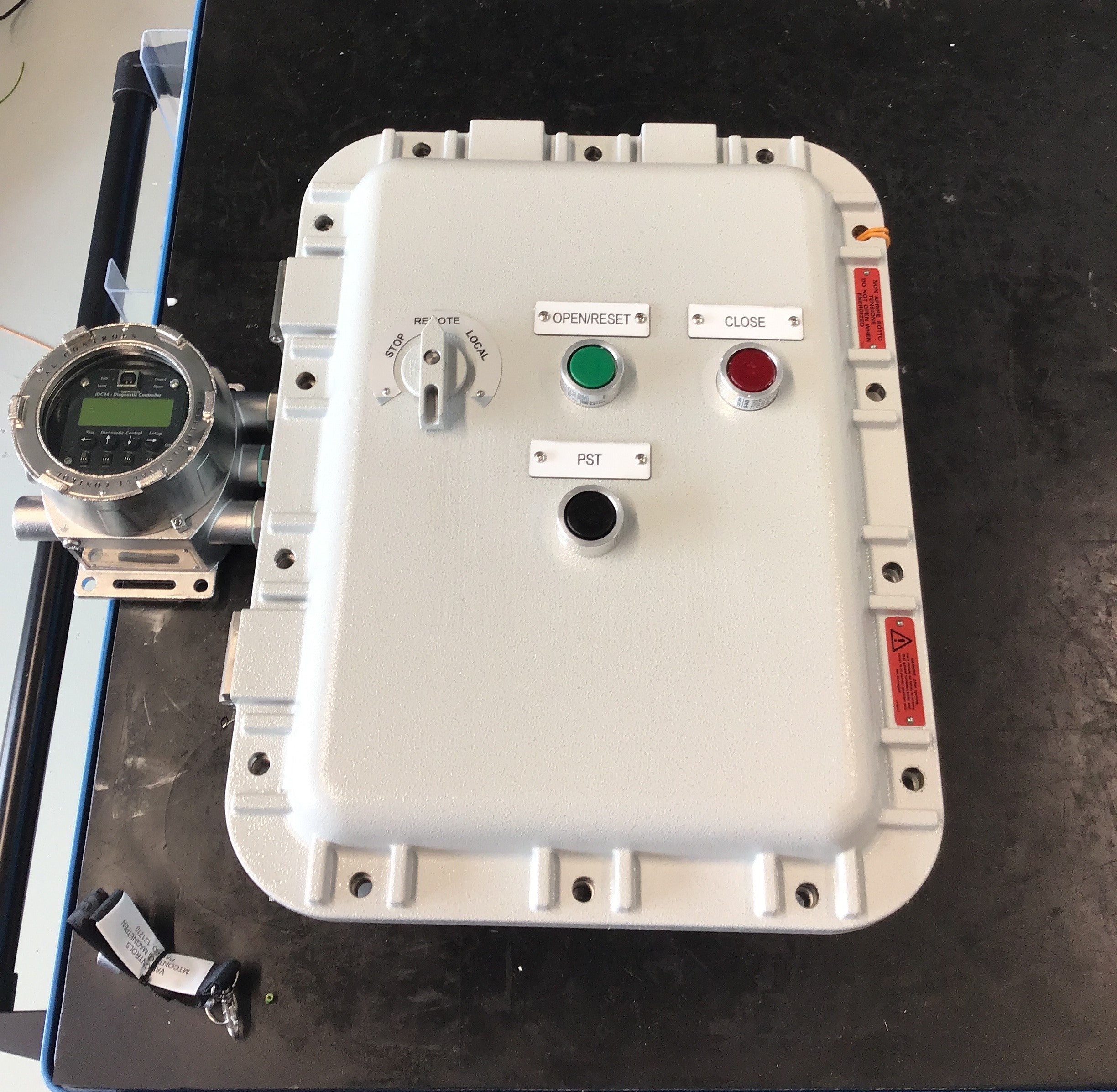

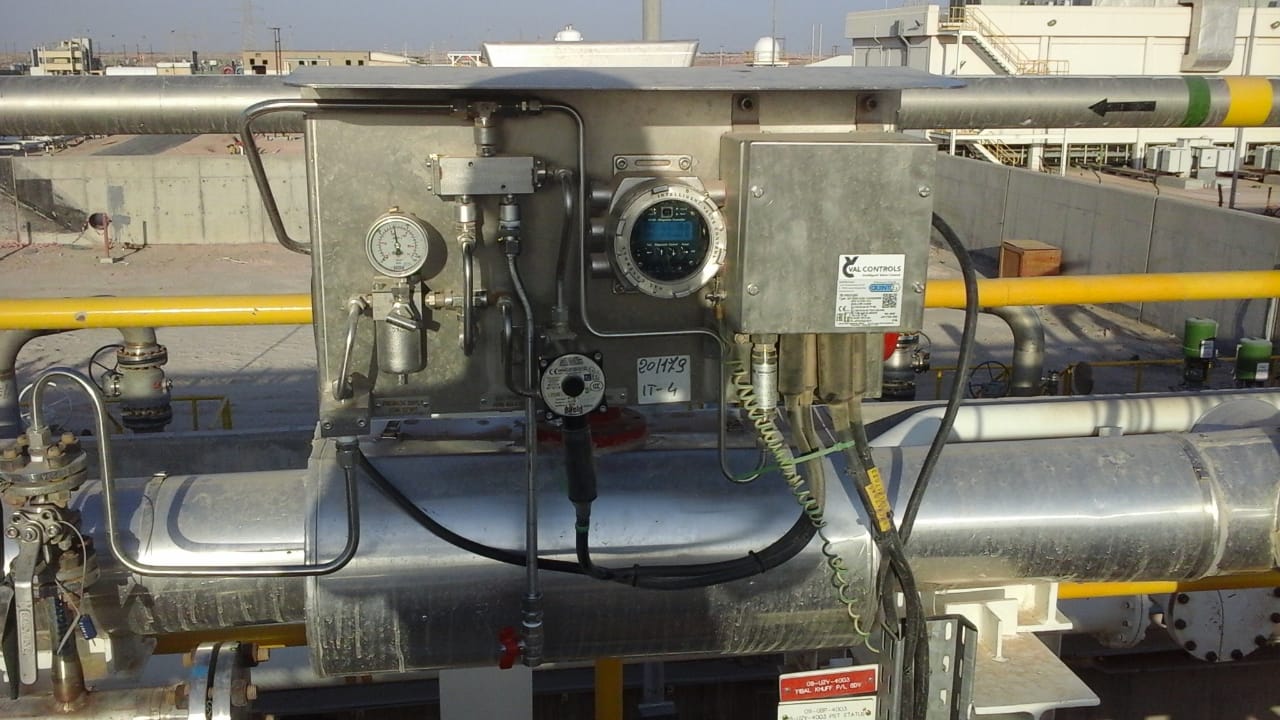

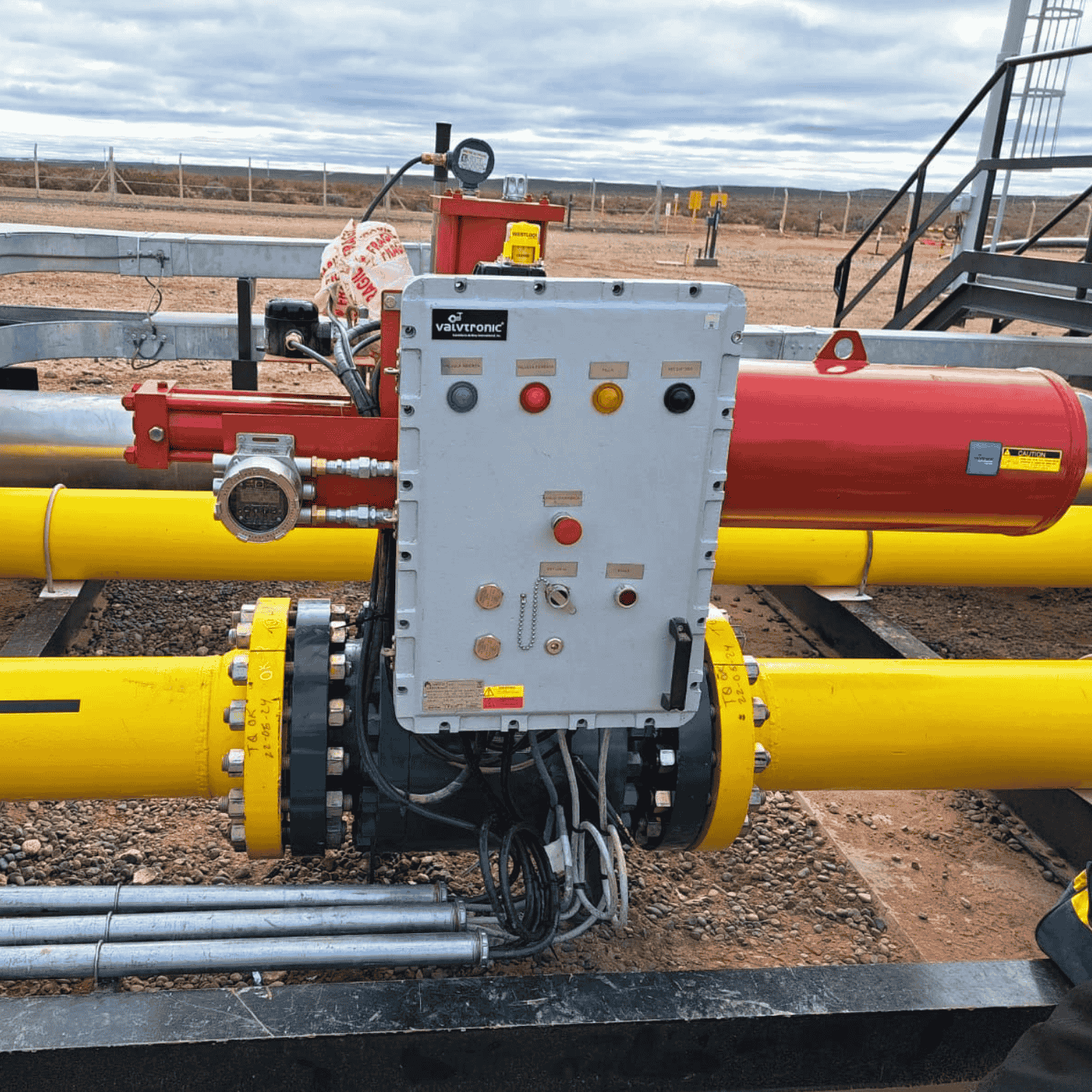

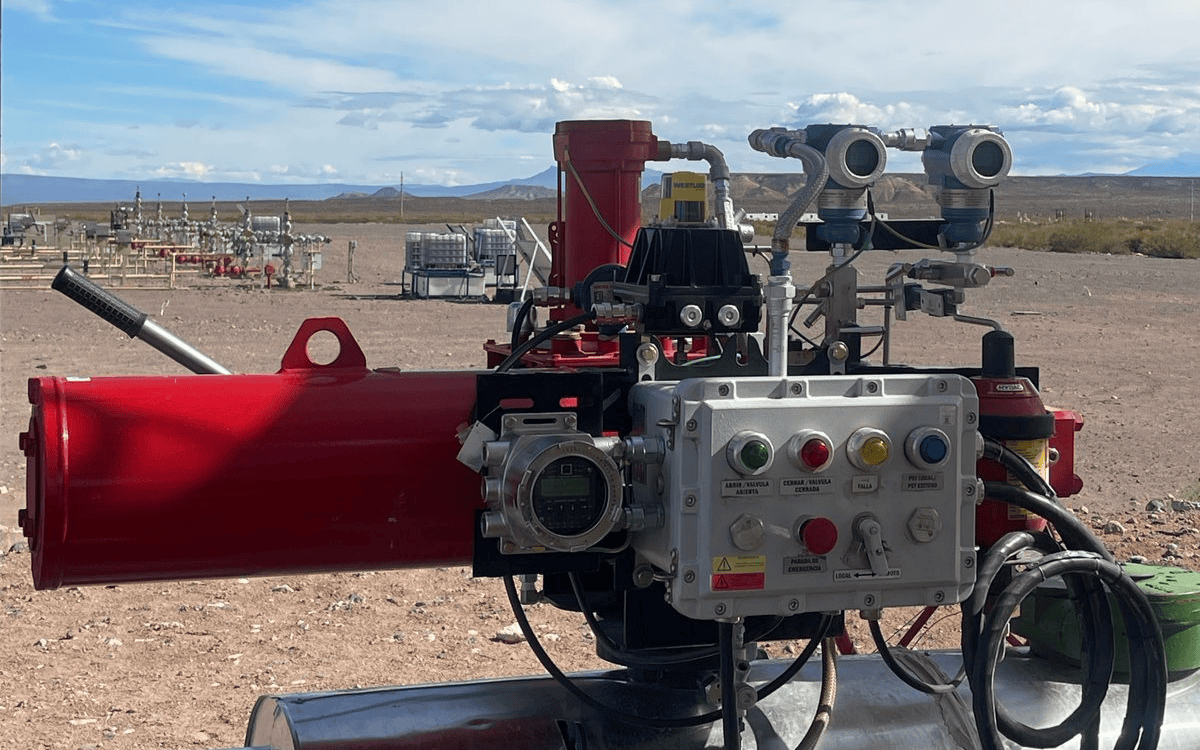

The IDC24-AF is a diagnostic controller manufactured in SS316L housing material that offers an efficient and straightforward method for conducting partial- and full-stroke tests, as well as monitoring and diagnosing critical valve systems.

The controller is ATEX, IECEx, UKCA, ECAS-Ex and EAC Ex certified and compatible with all types of valve systems, including 1oo1, 2oo2, 2oo2, and HIPPS systems.

It features a local user interface for configuring and controlling the valve system, along with indicator LEDs to display its status. When in use and opening the explosion-proof enclosure is not feasible, the IDC24 can be controlled through MTcontrol.

Communication options for this unit include 4-20mA – HART transmitter loop, Modbus, and Foundation Fieldbus.

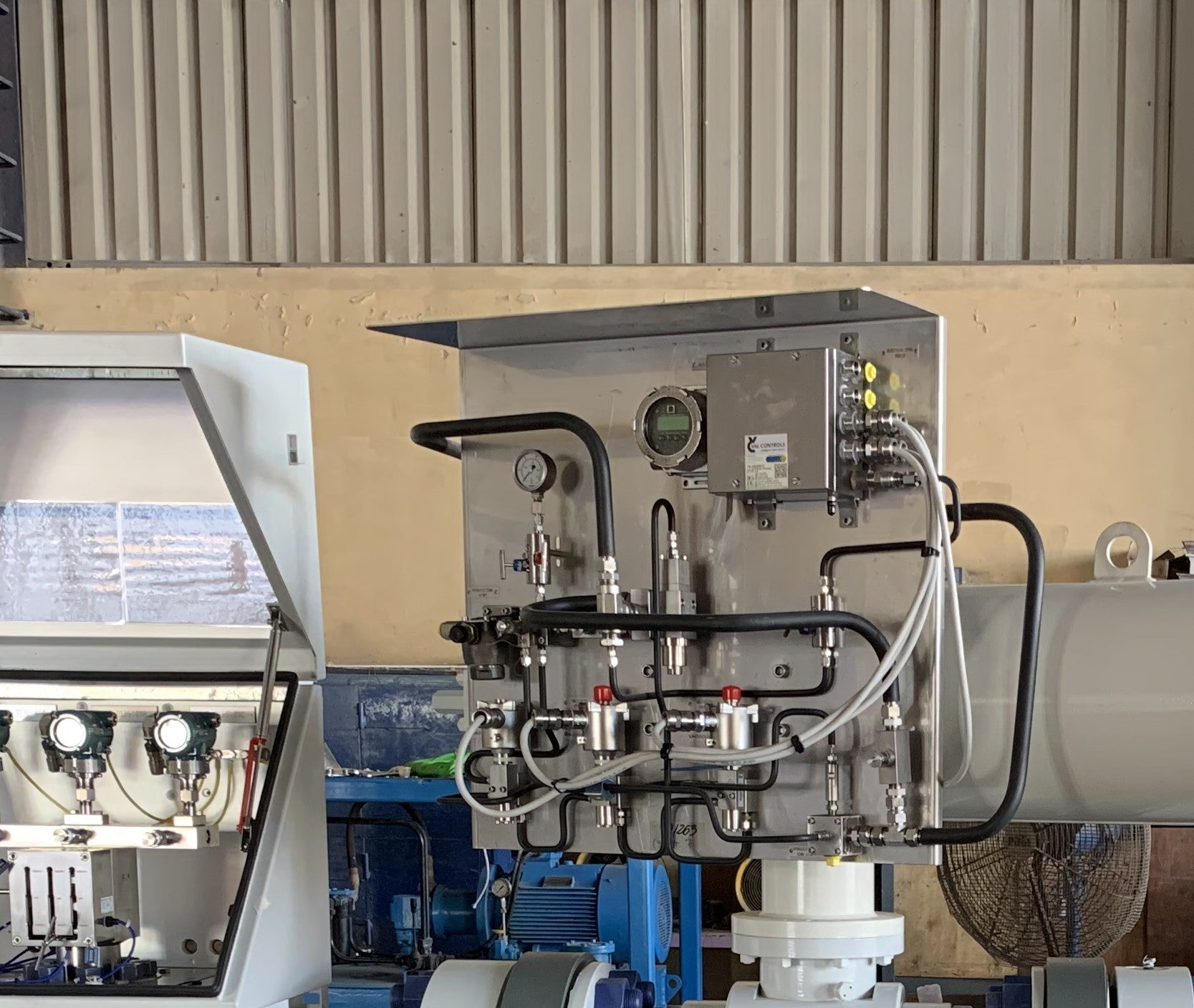

The controller is compatible with both hydraulic and pneumatic systems and a pressure transmitter compatible with both actuator types can be fitted to the controller.

Ex approvals

ATEX, IECEx, UKCA, ECAS-Ex and EAC Ex

Ex certification

II 2 GD Ex de IIC T4-T6

Approvals and standards

EMC according to IEC 61000
Vibration and transportation according to IEC 68000
Radio disturbance according to EN 55022

Design

Temperature range: -30°-+60°
Ingress protection: IP66
Enclosure material: SS316L

Communication

HART, Modbus and Foundation Fieldbus

Power

24VDC – unit power consumption <2W

Val Controls

ValConnect - IDC24

Configuration software

ValConnect is a free software provided by Val Controls which can be used to configure all types of controllers sold by Val Controls. ValConnect is typically used when the controllers are initially set-up.

To configure the controller ValConnect must be downloaded to your PC and the PC connected to the USB-port located on the controllers local user interface.

With ValConnect it is possible to:

• Configure multiple units with the same configuration

• Save configuration for documentation

• Update software on the unit

• Monitor and control all in- and outputs

Download ValConnect

IDC24-AF

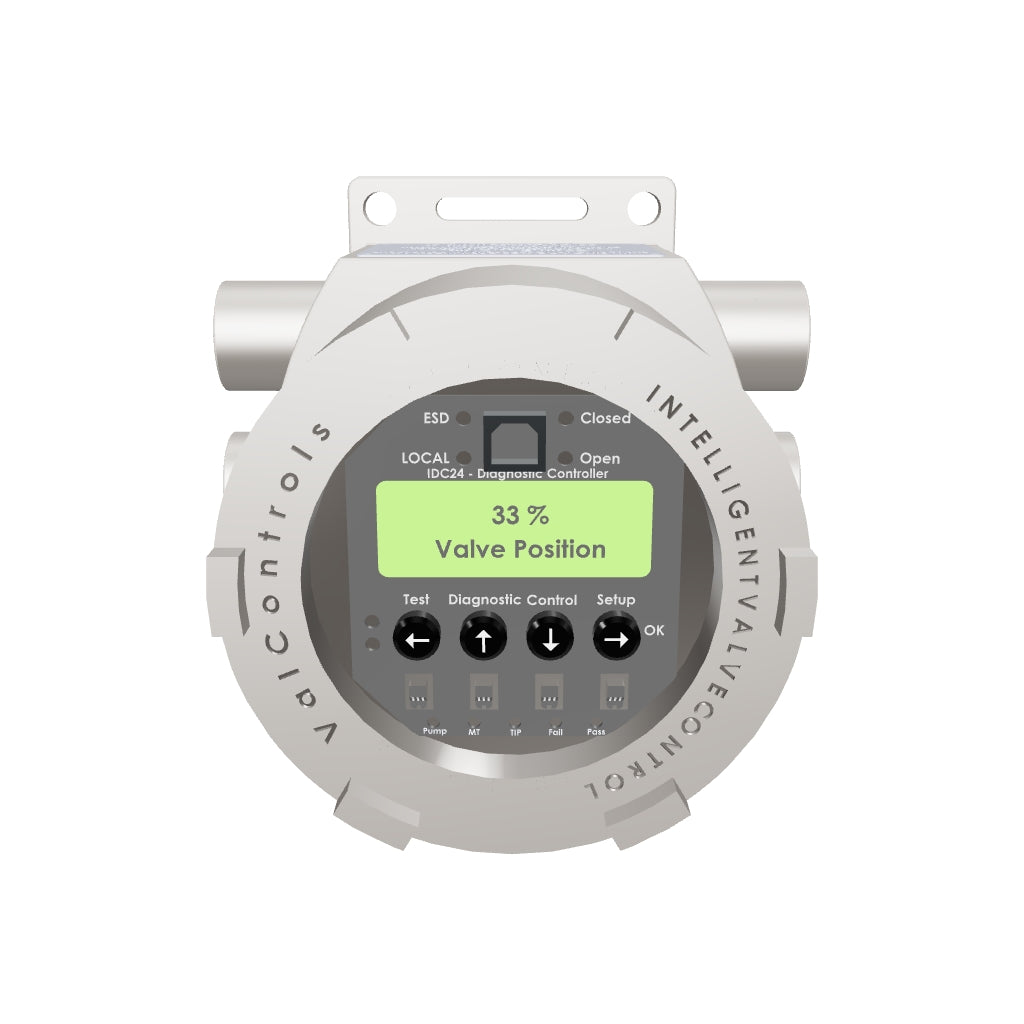

User interface

The local display control is available for the IDC24 model, granting full access to configure the controller and control the valve system. Furthermore, the IDC24 is equipped with various indicator LEDs that show the status of the system.

Graphical display and control buttons

The display is a four lined graphical display with backlight feature and adjustable contrast.

On the display you can see the status of the valve system, check position & pressure, start tests and perform diagnostics.

System LEDs

Indicators showing the overall system health.

Red: Indicates system error
Green: Indicates System OK

USB

The USB connection can be used to connect the IDC24 to a PC with ValConnect installed. ValConnect can be used to configure and control the IDC24 from the PC.

To learn more about ValConnect click here.

* USB function only possible when Exd enclosure is opened Please ensure all safety measures required prior opening an Ex d enclosure.

Indicator LEDs

The LED indicators can display various messages.

Valve open or closed
Valve movement in progress
Test pass
Test fail
Test in progress
ESD active
MTControl locked or unlocked
Local control mode enabled
Pump active

MTControl

When the IDC24-AF model is installed in a hazardous Area, opening the Exd enclosure is not allowed.
The MT Pen can operate the IDC24-AF through the enclosure and the MT Control function locks Automatically after operation to ensure unattended use.

The MTControl eliminates the need to open the units Ex D enclosure to operate the push buttons. The magnetic sensors placed below the push buttons, will detect magnetic signals from the MTControl pen provided by Val Controls.

To learn more about MTControl click here.
