Val Controls

IDC24-A

SKU: IDC24-A-110011
Communication: 11 - 4-20mA - HART transmitter loop

Communication
System design: 11 - 1oo1 system with one SIS power supply

System design
Product line brochure>
Datasheet>
Documentation>

Product details

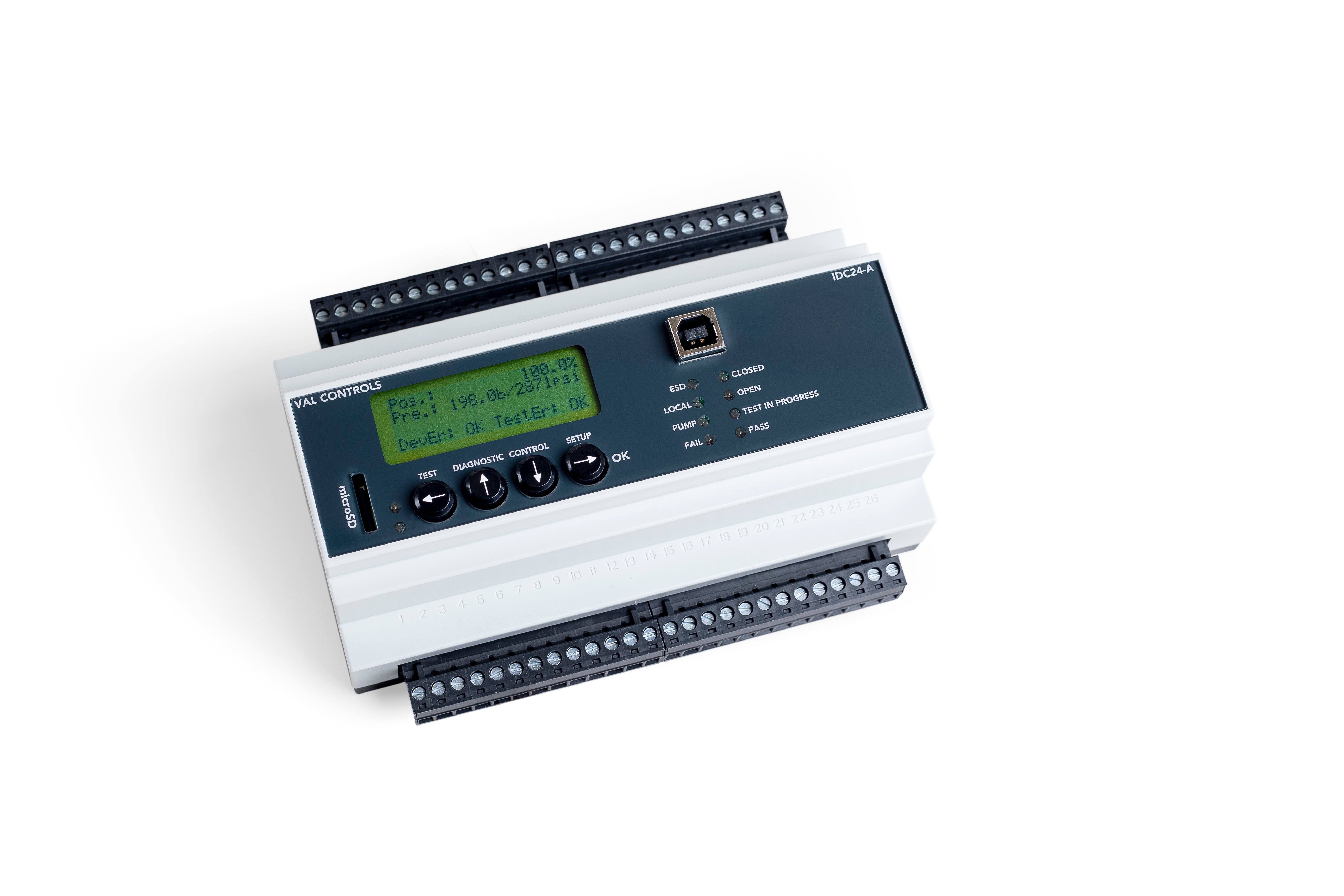

The IDC24-A is a DIN rail-mounted diagnostics controller that offers an efficient and straightforward method for conducting partial- and full-stroke tests, as well as monitoring and diagnosing critical valve systems.

The controller is designed for use with existing systems or by customers who have their own explosion-proof housing. It is compatible with all types of valve systems, including 1oo1, 1oo2, 2oo2, and HIPPS systems.

The controller features a local user interface for configuring and controlling the valve system, along with indicator LEDs to display its status. Communication options for this unit include 4-20mA – HART transmitter loop, Modbus, and Foundation Fieldbus.

Approvals and standards

EMC according to IEC 61000

Design

Temperature range: -30°-+80°
Ingress protection: IP20
Enclosure material: Plastic

Communication

HART, Modbus and Foundation Fieldbus

Power

24VDC – unit power consumption <2W

User interface

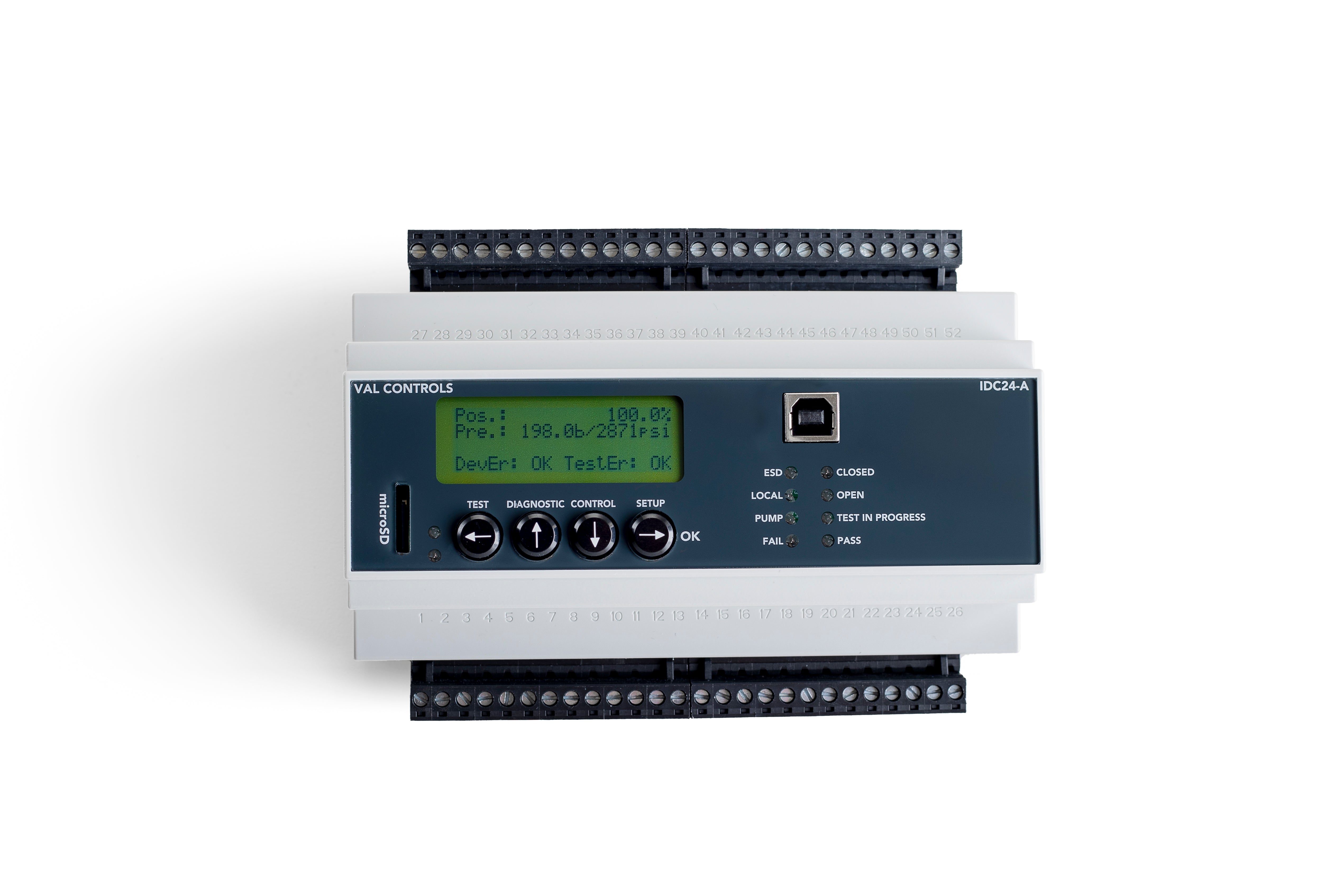

Local display control is available for the IDC24-A controller, granting full access to configure the controller and control the valve system. Furthermore, the IDC24-A is equipped with various indicator LEDs that show the status of the system.

IDC24-A - DIN-rail mounted Intelligent Diagnostics controller. Used for partial stroke testing ESD valves.

Graphical display and control buttons

The display is a four lined graphical display with backlight feature and adjustable contrast.

On the display you can see the status of the valve system, check position & pressure, start tests and perform diagnostics.

System LEDs

Indicators showing the overall system health.

  • Red: Indicates system error
  • Green: Indicates System OK

USB

The USB connection can be used to connect the IDC24 to a PC with ValConnect installed. ValConnect can be used to configure and control the IDC24 from the PC.

To learn more about ValConnect click here.

* USB function only possible when Exd enclosure is opened Please ensure all safety measures required prior opening an Ex d enclosure.

Indicator LEDs

The LED indicators can display various messages.

  • Valve open or closed
  • Valve movement in progress
  • Test pass
  • Test fail
  • Test in progress
  • ESD active
  • Local control mode enabled
  • Pump active
