Val Controls

IHP24-BF

Name: IHP24-BF
Brand: Val Controls
SKU: IHP24-BF-100000
Availability: InStock

SKU: IHP24-BF-100000

Communication:

HART

Variant

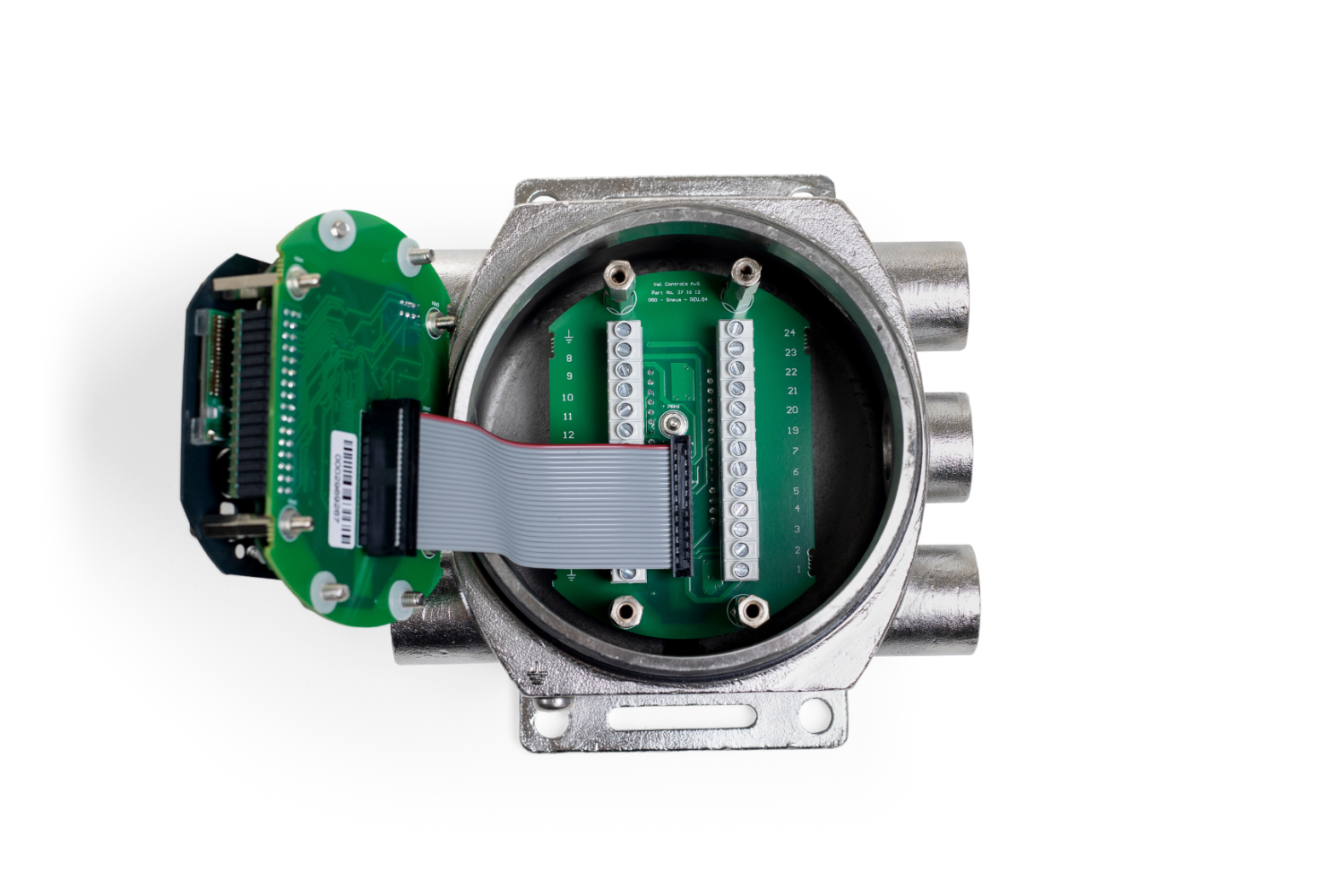

Introducing our positioner in an Ex d enclosure - the ideal solution for achieving precise positioning of actuators or choke valves with solenoid valves. Our Stainless steel (CF3M) flame and explosion proof enclosure provides maximum safety for critical controls in hazardous areas, yet still with access to the user-friendly interface.

Our positioner is equipped with an advanced calibration process that, when combined with the regulator, ensures fast and reliable positioning of actuators, providing an optimal performance and precision for your system.

The positioner is compatible with all actuator types including; hydraulic, pneumatic, or electro-hydraulic - spring return, double acting and stepping actuators, making it a versatile solution that can easily adapt to your system's needs.

Product line brochure>

Datasheet>

Documentation>

Val Controls

ValConnect - IHP24

Configuration software

ValConnect is a free software provided by Val Controls which can be used to configure all types of controllers sold by Val Controls. ValConnect is typically used when the controllers are initially set-up.

To configure the controller ValConnect must be downloaded to your PC and the PC connected to the USB-port located on the controllers local user interface.

With ValConnect it is possible to:

• Configure multiple units with the same configuration

• Save configuration for documentation

• Update software on the unit

• Monitor and control all in- and outputs

Download ValConnect

User interface

The local display control is available for the IHP24 model, granting full access to configure the controller and control the valve system. Furthermore, the IHP24 is equipped with various indicator LEDs that show the status of the system.

Graphical display and control buttons

The display is a four lined graphical display with backlight feature and adjustable contrast.

On the display you can see the status of the valve system, check position & pressure, start tests and perform diagnostics.

System LEDs

Indicators showing the overall system health.

Red: Indicates system error
Green: Indicates System OK

USB

The USB connection can be used to connect the IHP24 to a PC with ValConnect installed. ValConnect can be used to configure and control the IHP24 from the PC.

To learn more about ValConnect click here.

* USB function only possible when Exd enclosure is opened Please ensure all safety measures required prior opening an Ex d enclosure.

Indicator LEDs

The LED indicators can display various messages.

Valve open or closed
Valve movement in progress
ESD
Local control mode enabled
Pump active

MTControl

When the IHP24-AF model is installed in a hazardous Area, opening the Exd enclosure is not allowed.
The MT Pen can operate the IHP24-AF through the enclosure and the MT Control function locks Automatically after operation to ensure unattended use.

The MTControl eliminates the need to open the units Ex D enclosure to operate the push buttons. The magnetic sensors placed below the push buttons, will detect magnetic signals from the MTControl pen provided by Val Controls.

To learn more about MTControl click here.
